CHAINWIRE FENCING

CHAIN WIRE FENCING

CHAINWIRE FENCING AND MESH SUPPLIES

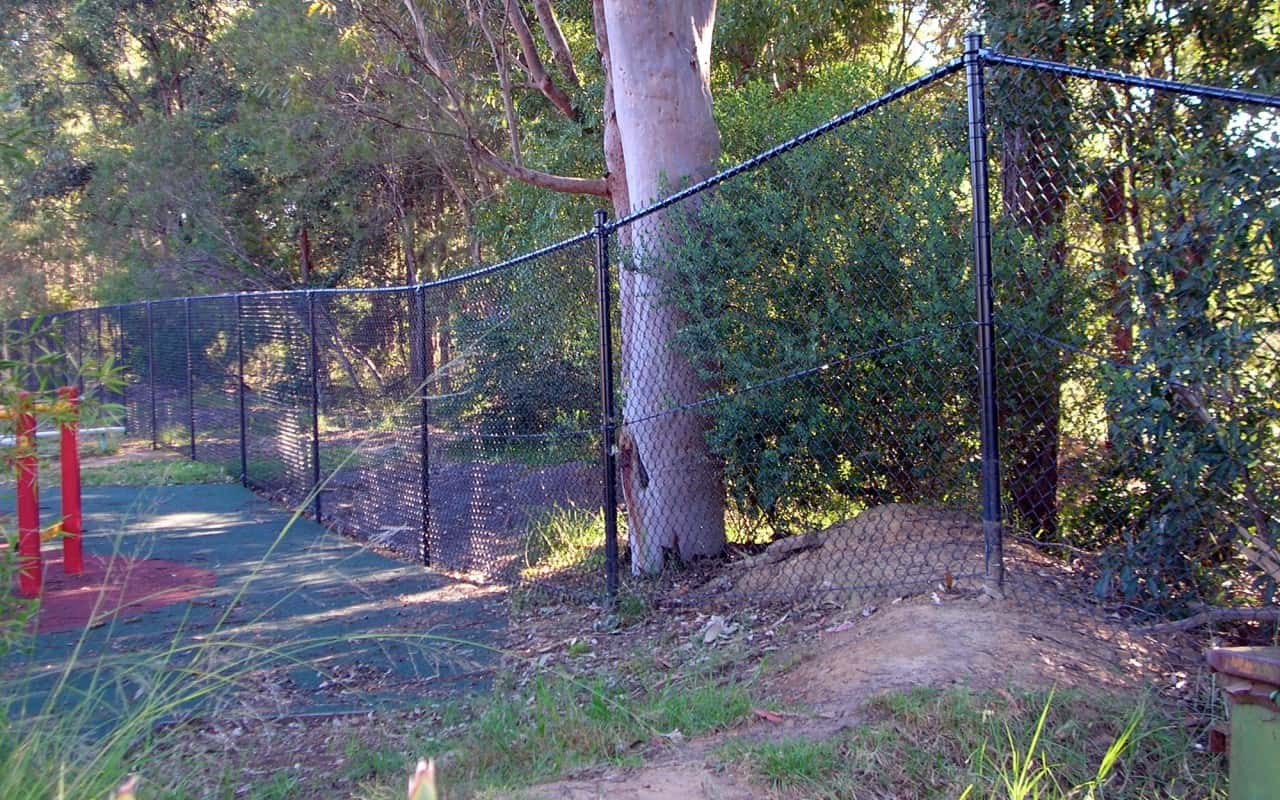

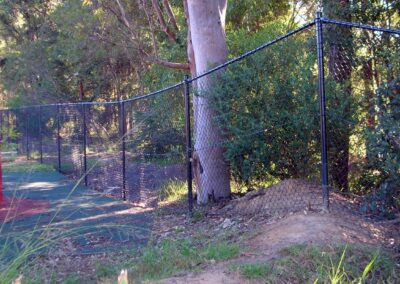

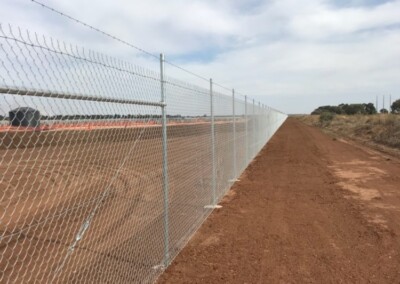

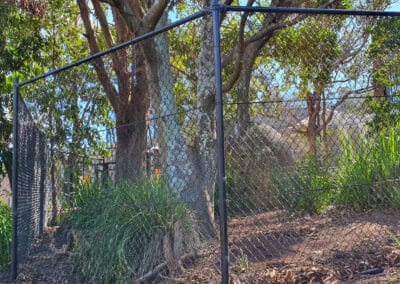

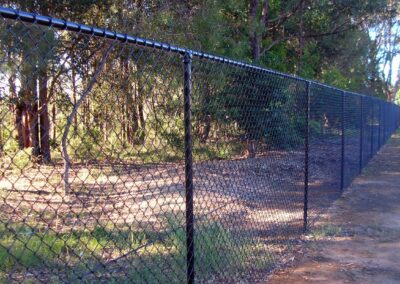

Chain wire fencing, also known as chainlink, chainmesh and chainwire fencing is one of the oldest forms of wire based fencing.

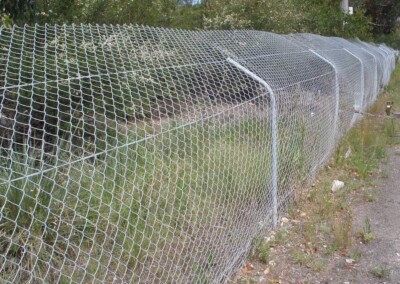

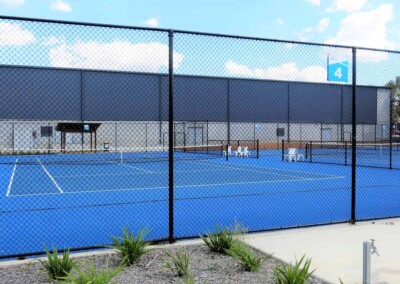

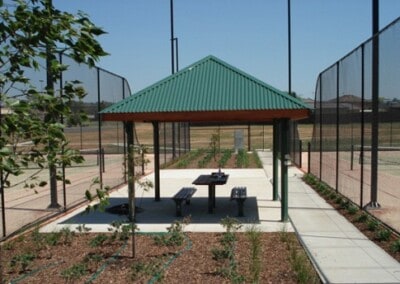

It can be used for a variety of domestic, commercial or industrial applications, including tennis court fencing, factory/building enclosures, cricket practice nets, sporting enclosures, temporary fencing, wildlife highway fencing and also for effective erosion control and rock stabilisation.

DIAMOND FENCE CHAIN WIRE

CHAIN WIRE FENCING SPECIFICATIONS:

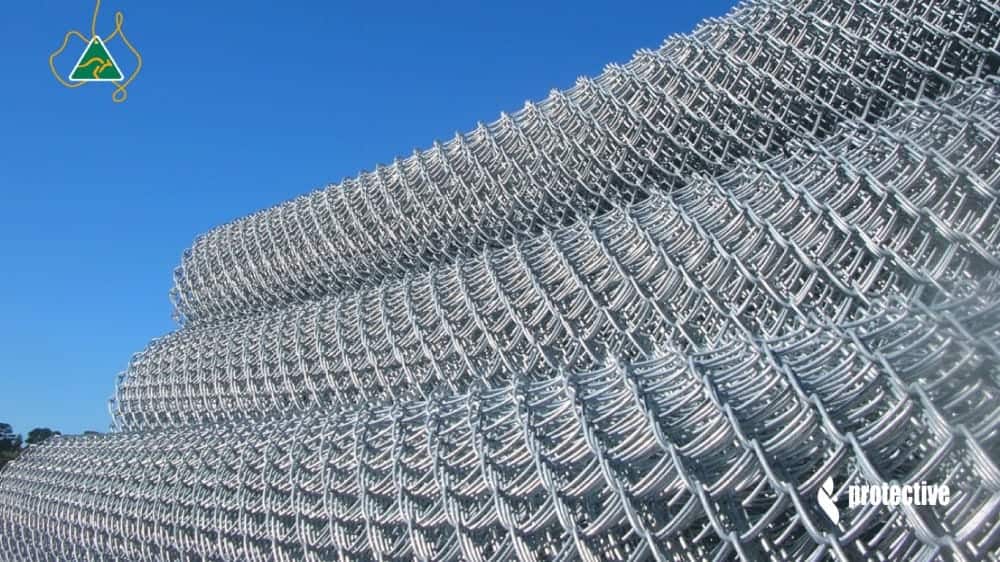

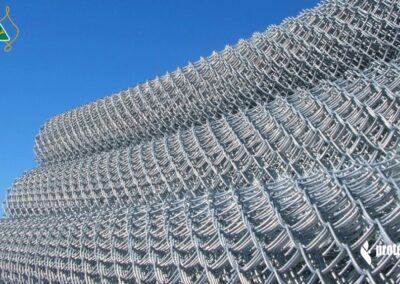

Australian Made
Mesh Aperature: 25mm to 60mm
Wire Diameters: 2.24mm, 2.50mm, 3.15mm and 4mm
Height: 450mm to 4500mm

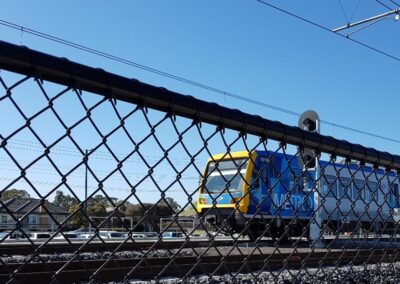

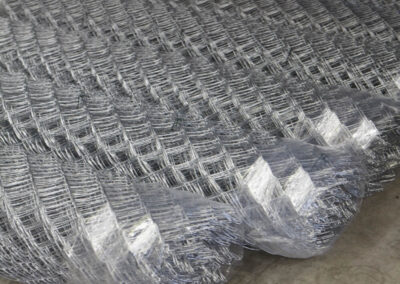

Finish: Heavy Galvanised, PVC Coated, Lifemax and Fusion Bonded.

STANDARDS:

Mesh: AS1725-2010 – Chain link fabric fencing
Galvanising: Standard Grade – Class B to AS1650-2.2, Heavy Grade – Class A to AS 1725-2.2

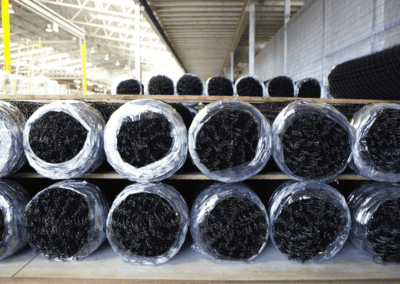

• • The nominated chainwire length is a strained length of the roll.
  • Mesh size is the maximum distance between the wires forming the parallel sides of the diamond.
  • Chainwire height measurement is from knuckle to knuckle or the first twist of the barbs.
  • Knuckle & barb selvedge is client nominated at the time of purchase.
  • Galvanising: Standard Grad – Class B to AS1650-2.2. Heavy Grade – Class A to AS 1725-2.2

CHAIN WIRE POSTS & STAYS

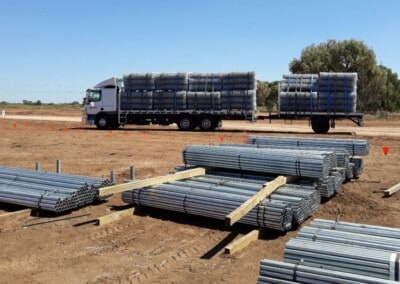

CHAIN WIRE PIPE

Protective Fencing has a range of pipe sizes (25, 32, 40, 50, 80 & 100NB) in various lengths up to 7200mm and multiple grades from extra light, light and medium. Powder coating is available.

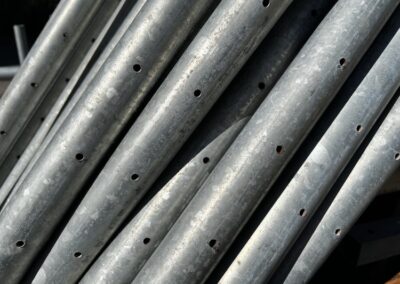

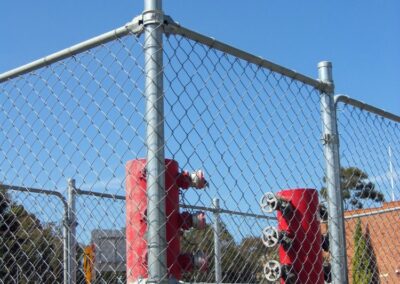

CHAIN WIRE POSTS & STAYS
Posts and stays to suit all fencing and screen requirements are available.

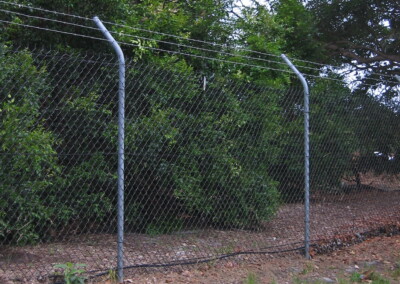

• Straight & Cranked Posts
• Twin & Triple Gate Posts
• Line & Back Stays
• Tennis Court Posts & Accessories
• Tennis Court Light Poles

DOWNLOADS

• POSTS STAYS BROCHURE (PDF)
• PROTECTIVE FENCING CATALOGUE (PDF)

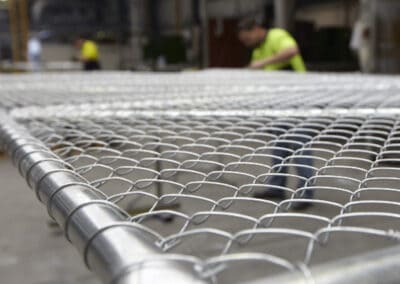

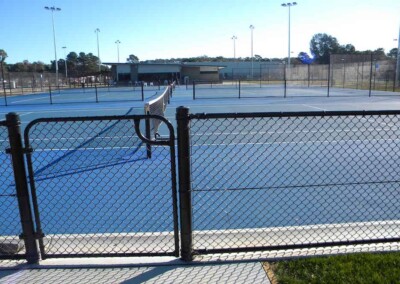

STANDARD CHAIN WIRE GATES

Chain Wire Security gates are 1800mm high of Diamond Fence chainwire and a 500mm extension with 3 strands of barbed wire. Available in different widths for single or double gates, PVC black or green infills, and matching powder-coated frames. All gates come supplied with a locking system, excluding hinges dependent on post type and size.


Chain Wire Domestic gates come in a range of heights (900, 1200, 1500 & 1800mm). With various widths, there should be a gate to suit your application, from single to double gates.

All domestic gates are made from 25NB galvanised tube to suit harsh environments.

Gates also come with PVC black or green infills and powder coated frame to match. All fittings are included, excluding hinges which are dependent on post type and size.

CHAIN WIRE HEAVY-DUTY GATES

Heavy duty gates are designed for those applications which require a strong gate with or without the barbed wire.

The frame is constructed from 32NB galvanised pipe and has heavy-duty fittings.

Available at 1800mm high and various widths with the option of PVC black or green Diamond Fence Chain wire infill and powder coated matching frame. All fittings are included, excluding hinges dependent on post type and size.

DOWNLOADS

• CHAIN WIRE GATES (PDF)
• PROTECTIVE FENCING CATALOGUE (PDF)

CHAIN WIRE COILS & ACCESSORIES

CABLE & TIE WIRE

Used in chainwire and rural fencing applications. Tie wire is available in 1.57mm and 2.00mm gauges. Cable/line wire is available in 2.5mm and 3.15mm gauges with Helicoil in 4mm gauge. All wire products are heavily galvanised or galvanised with black or green PVC coating.

BARBED WIRE COILS

Available in Hi Tensile at 1.57mm gauge or Iowa Soft at 2.5mm gauge. Coils range from 100M and 500M rolls. Stainless steel barbed wire is available on request.

WIRE ACCESSORIES

A wide range of wire ties, C clips and tools are available.

RAZOR TAPE

In areas where security is essential, Razor Tape, along with Chainwire Fencing, 358 Mesh Security Fencing or High Security Palisade Fencing, ensures maximum protection from vandals and intruders.

Concertina and Flat loop Razor tape have been developed to replace the standard barbed wire in its role to deter, obstruct and protect. Razor tape consists of a steel strip reinforced with high tensile wire and has spear-like barbs at close intervals.

Heavy duty clips form a concertina configuration with diameters from 550mm to 1500 mm diameter available. Razor tape long barb is also available for permitted uses. Concertina coils can be self-supporting and attached to existing barrier fences or used independently as a barrier line.

Flat loop tape is often attached in overlapping loops to pre-strung barbed wire and is particularly useful where the depth of the fence is limited. The more significant the overlap, the greater the deterrent.

CUT & STRAIGHTENED AND FORMED WIRE

Cut and straightened wire is used in many applications such as ceiling rods, pre-cut wire ties, florist applications and general wire working. Protective can supply a large variety of shaped wire forms such as clips, hooks, pins, and pegs.

• Wire Diameters from 2.5mm to 10mm
• Finishes – Standard Galvanised, Heavy Galvanised, Zalcote, Hard Drawn Low Carbon Bright, PVC Coated, Stainless Steel and Powder Coated
• Huge range of standard hooks for the Powder Coating and plating industry is available

DOWNLOADS

• WIRE COILS & ACCESSORIES (PDF)
• PROTECTIVE FENCING CATALOGUE (PDF)

CHAIN WIRE COILS & GATE FITTINGS

CHAIN WIRE SECURITY GATES

Chain Wire Security gates are 1800mm high of Diamond Fence chainwire and a 500mm extension with 3 strands of barbed wire. Available in different widths for single or double gates, PVC black or green infills, and matching powder-coated frames. All gates come supplied with a locking system, excluding hinges dependent on post type and size.

STANDARDS COMPLIANCE

Protective Fencing Chain Wire Fencing is in compliance with the following AS, AS/NZS standards

• AS1725 2010 – Chainlink fabric security fences & gates
• AS/NZS 4534 2006 – Zinc and zinc aluminium alloy coatings on steel wire
• AS/NZS 4680 2006 Hot dip galvanised (zinc) coatings on fabricated ferrous articles
• AS/NZS 4792 2006 – Hot dip galvanised (zinc) coatings on ferrous hollow sections applied by a continuous or specialised process
• AS/NZ 4506 2005 – Thermoset powder coatings
• AS 2423 2002 – Coated steel wire fencing products for terrestrial, aquatic and general use
• AS1163 – Structural steel hollow sections

INSTALLATION GUIDE

DOWNLOADS

• Fence & Gate Fittings.pdf
• Complete Protective Catalogue.pdf
• Chain Wire Fencing Installation Guide
