Close-spaced welded steel mesh for utility network specifications
DESCRIPTION

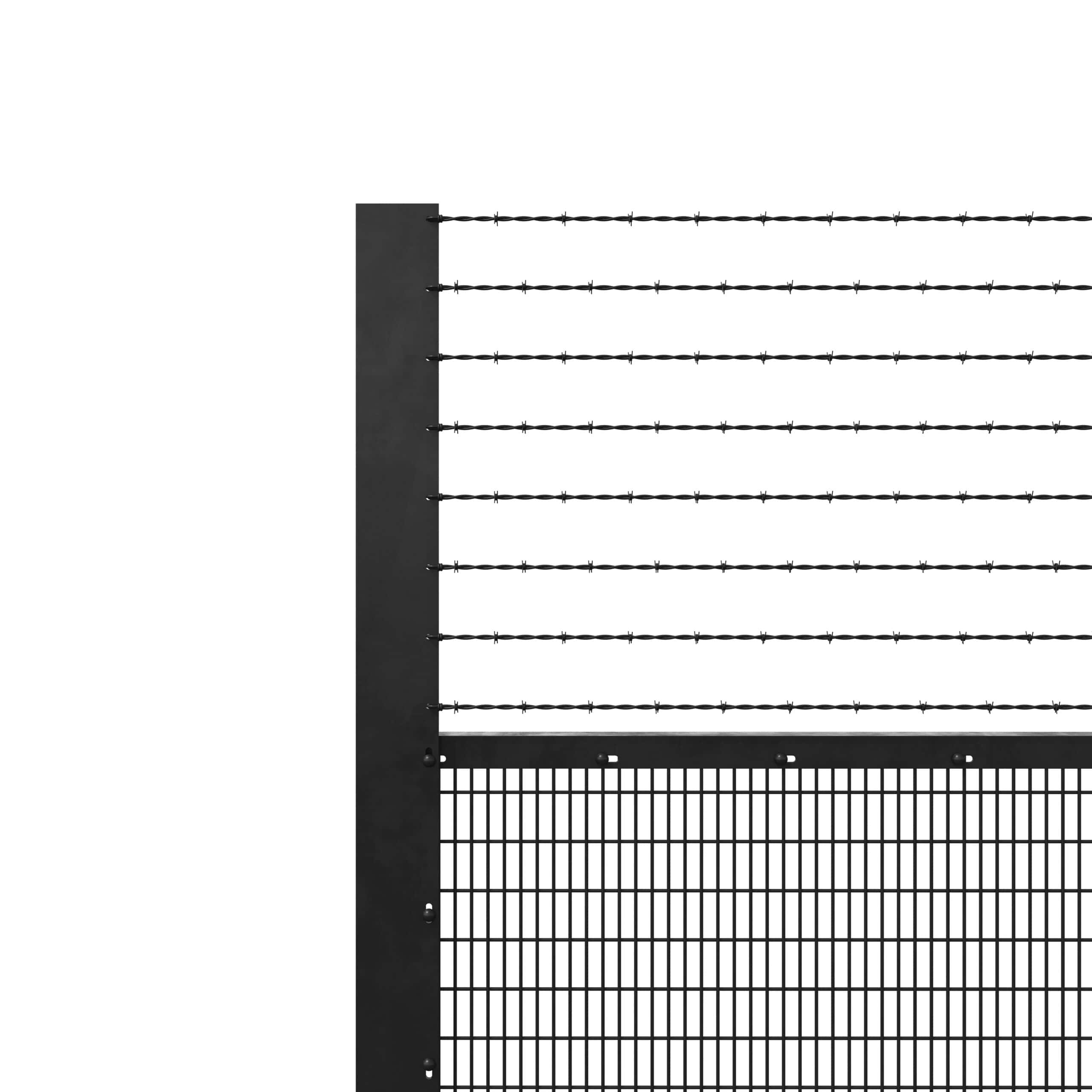

Promax™ EA mesh is a custom-specified close-spaced welded steel mesh manufactured for network operator perimeter applications. The system is specified by Ausgrid for substation and switchyard perimeter security across the Sydney, Central Coast and Hunter Valley regions.
The mesh features a 25mm x 75mm aperture and 5mm wire diameter, providing a tight, close-spaced barrier suitable for security level perimeter protection around utility infrastructure. Standard panel dimensions are 2400mm wide by 3000mm high. For projects requiring anti-climb performance, see the Promax™ 358 mesh range.
Promax™ EA mesh is available in three coating options to suit different specification and environmental requirements:
- Bright finish (raw material, uncoated)
- LifeMax Plus by Infrabuild (zinc-aluminium coating for enhanced corrosion resistance)
- Hot Dip Galvanised to AS/NZS 4680 (full immersion galvanising for maximum durability)

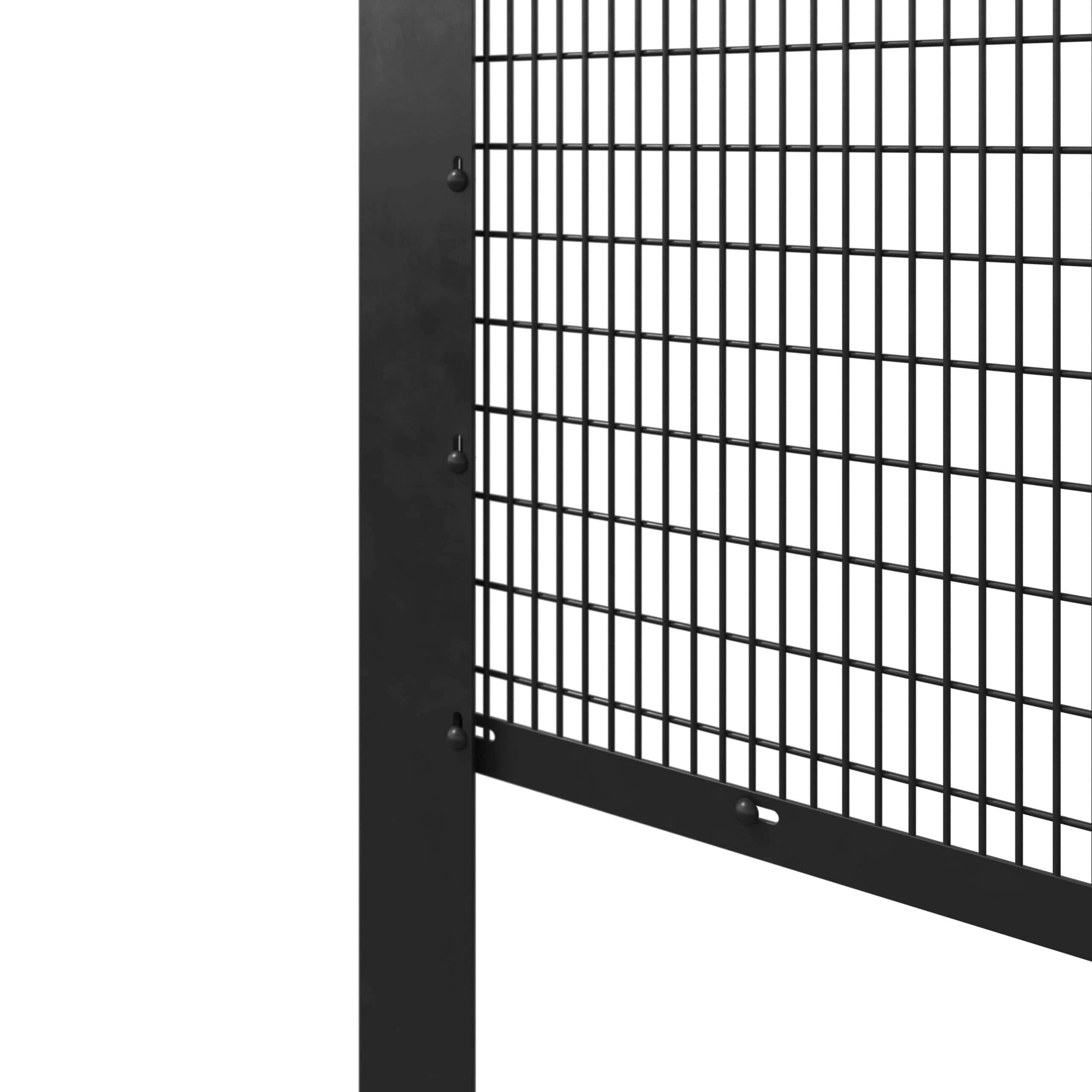

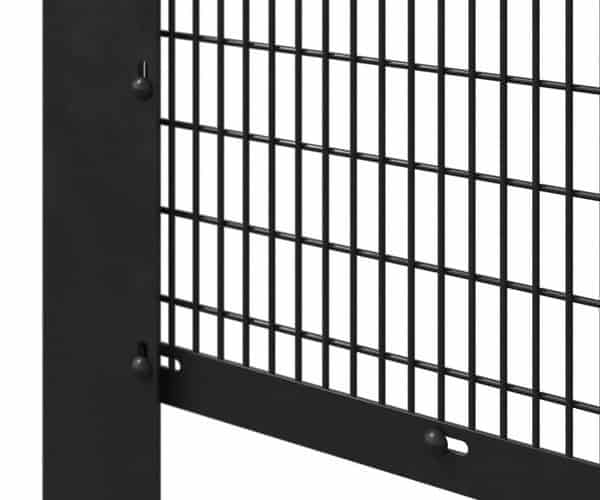

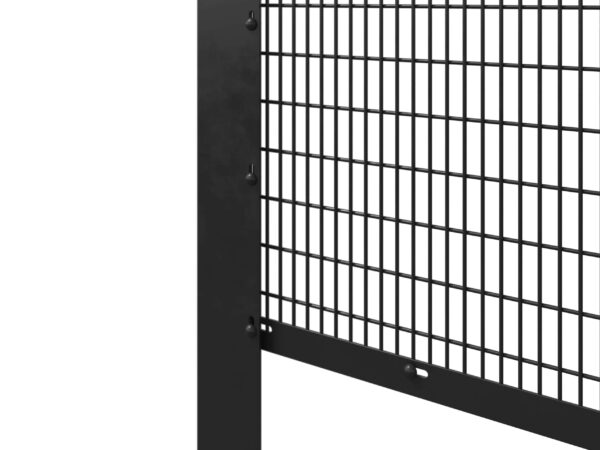

The system uses a nominal bore (NB) post configuration matched to the structural role of each post within the fence line, ranging from 32NB up to 100NB depending on position and loading requirements. Panels are connected with easy-ty security ties and H joiners, providing secure panel-to-post fixing aligned with utility network installation requirements. Read more about specification considerations in our substation security fencing guide.
Profence manufactures Promax™ EA mesh in Australia and supplies directly to contractors, utilities, and project specifiers working on network infrastructure projects. For project quotes, specification verification, or technical support, contact the Profence team.
KEY FEATURES
- Manufactured to network operator specifications including current Ausgrid requirements
- Close-spaced 25mm x 75mm aperture for security level perimeter protection
- 5mm wire diameter welded steel construction
- Standard panel size 2400mm wide x 3000mm high
- Three coating options: Bright (raw material), LifeMax Plus by Infrabuild, or Hot Dip Galvanised to AS/NZS 4680
- Engineered nominal bore post system ranging from 32NB up to 100NB based on position and loading
- Easy-ty security ties and H joiners for secure panel-to-post fixing
- Australian-made manufacturing at the Profence facility
- Direct manufacturer supply with technical support
- Suitable for substations, switchyards and utility network perimeters
- Backed by the Profence product warranty
PREMIUM QUALITY
Manufacturer Direct service and quality guaranteed
AUSTRALIAN OWNED
Trusted products Made in Australia
CUSTOM SOLUTIONS
Manufactured to your specifications
GUARANTEED DELIVERY
Speedy delivery direct to site
EXTENSIVE STOCK
One stop shop, largest stockist of security fencing
FENCE SYSTEM COMPONENTS
AUSGRID MESH SHEETS 5MM WIRE – 75MM X 25MM
HIGH SECURITY GATES FOR ANY SITUATION
The Promax system includes matching gates using the same high security 358 mesh infill as the fence.
Single, double swing or sliding gates are available. Most common sizes include – 1.2M Pedestrian gates, 4.8M and 6M double
gates.
Custom-engineered gates to match fence height and customer specifications.
PROMAX EA AUSGRID MESH SHEETS 5MM WIRE – 75X25MM
HIGH SECURITY GATES FOR ANY SITUATION
The Promax system includes matching gates using the same high security 358 mesh infill as the fence.
Single, double swing or sliding gates are available. Most common sizes include – 1.2M Pedestrian gates, 4.8M and 6M double
gates.
Custom-engineered gates to match fence height and customer specifications.
Post options for high security 358 mesh or EA mesh fencing
WARRANTY
High Security fencing Warranty – Protective Fencing as the manufacturer of the PROMAX security system warranty’s that the products will be suitable for the propose intended and free of any manufacturing defects for a period of 10 years.
TESTING & STANDARDS
Promax fencing systems are manufactured and tested to ensure they comply with the following standards:
? AS/NZS 4100-2020 Steel structures
? AS/NZS 4534-2006 Zinc/Zinc Aluminium alloy coatings on steel wire.
? AS/NZS 2423-2002 Coated steel wire fencing products for terrestrial, aquatic and general use.
? AS/NZS 4680-2006 hot dip galvanised (zinc) coatings of fabricated ferrous articles.
? AS/NZS 4506-2005 Metal finishing – Thermoset powder coatings.
? BS EN 10223-4-1998 Steel and wire products for fencing. Steel wire welded mesh.
? BS EN 1722-12-2006 specification for steel palisade fences.
WIND LOADING
There are several wind loading factors to consider when specifying a fencing system as per AS1170.2:2011, including the region, terrain category multiplier, wind directions, shielding, topographic multipliers and post-disaster importance level.
Our fencing design has been tested against the harshest environments and we can provide a solution for every environment.
Our fencing experts are here to help you with your design, our experienced team will ensure that your project meets the required standards.
POWDERCOATING
Protective Powdercoating are an accredited applicator of Interpon Metaplex commercial coatings on hot-dipped
galvanised steel.
- Interpon Metaplex Commercial Accredited Applicator, product warranty available depending on topcoat selection.
- Powdercoating completed in accordance with AS/NZ 4506-2005 Metal Finishing – Thermoset Powder Coatings.
