PALISADE

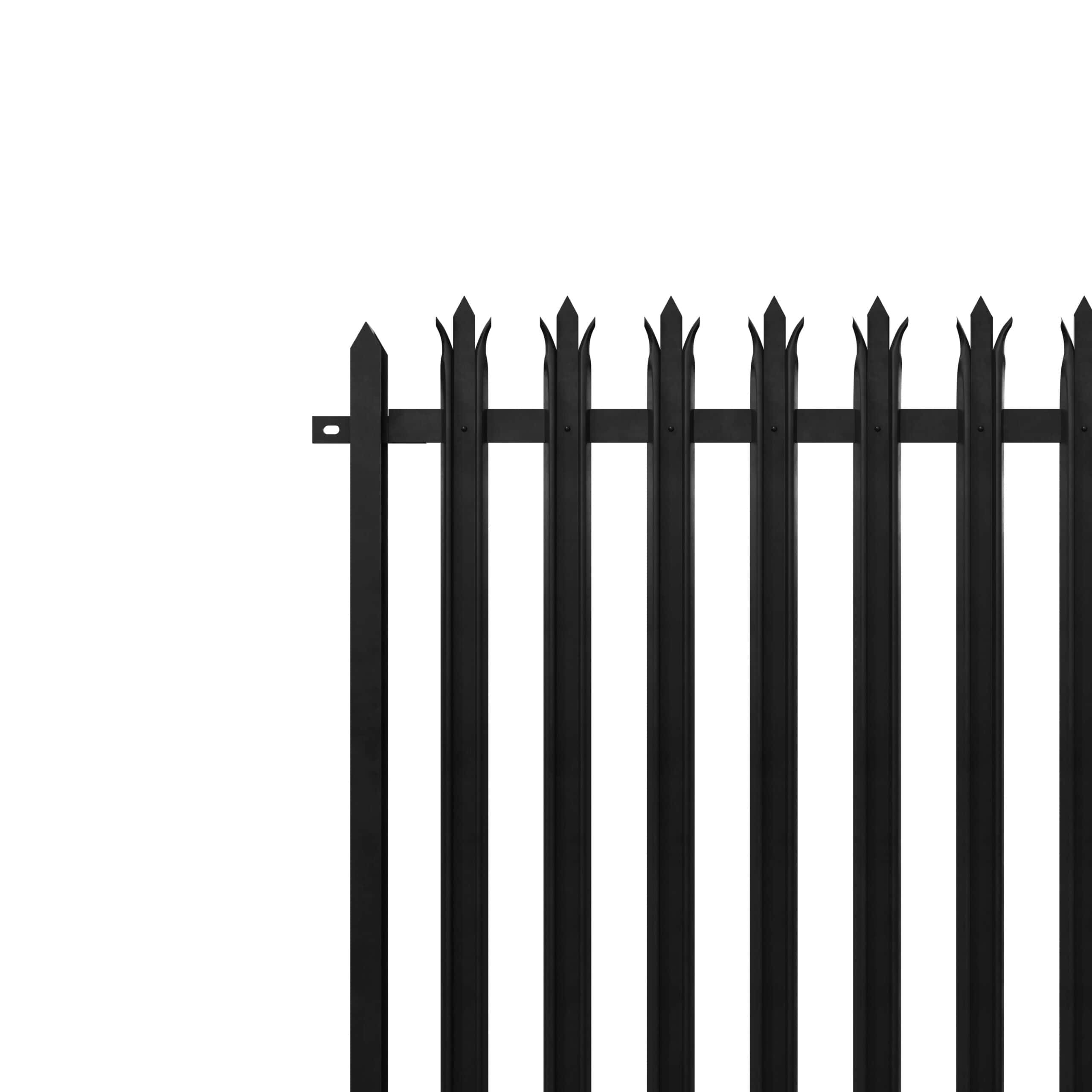

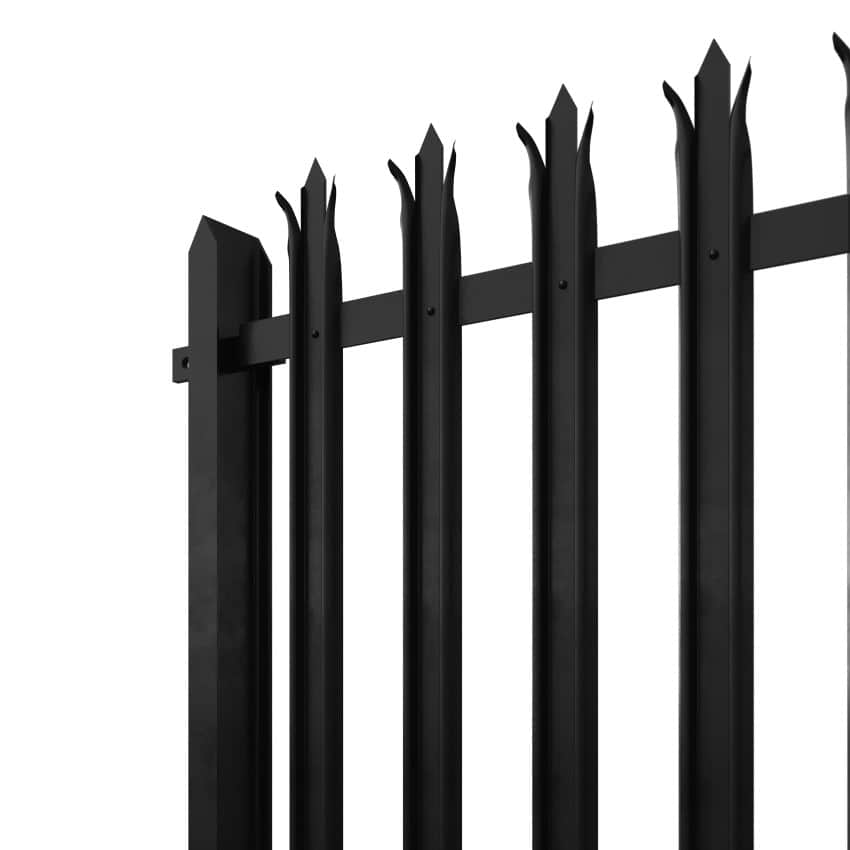

PROPALE™ PALISADE- W PALES STRAIGHT TOP

PROPALE™ PALISADE- W PALE - HIGH SECURITY FENCE - AUSTRALIA’S LEADING PERIMETER PROTECTION SYSTEM

DESCRIPTION

PALISADE FENCING - PROPALE SECURITY FENCING

Propale™ palisade high security fencing system is the strongest and most durable anti climb fencing system in Australia.

W pales are of a BS1722-12 approved design and comply with all the strength requirements specified in Annex A & C.

Compatible with traditional specifications using pencil point TFB posts and 150UB posts and standard 50x50x6 rails, accessories and complementary gates mean faster installation and less maintenance.

All Propale™ palisade fencing systems can be specified using a post and either double or triple rail systems, pale centres can be specified to suit current Rail specification of max 80mm between pales the wider centres of 155mm as per the BS1722-12, dependant on the end use security level requirements.

KEY FEATURES

Fastest perimeter protection system to install
Durable, optimal vandal-resistant
High-level security fence, custom heights available depending on specification
Manufactured to High Security fencing standard BS1722-12
Compatible with various post configurations, including PROMAX T post, the strongest, lightest high-security post available.
Custom engineered solutions available, optimal raked ground suitability.
Technical Support team available always
Premium Quality Galvanised steel 3mm W pales (HA300) available in powder coat finish.
Durable 100% Australian-made product manufactured to the highest specifications
Available in stock product Ready for same-day dispatch
Confidence backed by a 10 Year Warranty

REQUEST QUOTE

PREMIUM QUALITY

Manufacturer Direct service and quality guaranteed

AUSTRALIAN OWNED

Trusted products Made in Australia

CUSTOM SOLUTIONS

Manufactured to your specifications

GUARANTEED DELIVERY

Speedy delivery direct to site

EXTENSIVE STOCK

One stop shop, largest stockist of security fencing

FENCE SYSTEM COMPONENTS

PALES W SECTION - HOT DIP GALVANISED

FENCE HEIGHT

TYPE

TOP

LENGTH

WEIGHT

ITEM NUMBER

PALISADE PALE STRAIGHT 2400

2400

STRAIGHT

TRI POINT

2350

5.64 Kg

PP PALE 2400 G

PALISADE PALE STRAIGHT 2950

3000

STRAIGHT

TRI POINT

2950

7.07Kg

PP PALE 2950 HOG

POSTS - HOT DIP GALVANISED

FENCE HEIGHT

POST

RAILS

LENGTH

WEIGHT

ITEM NUMBER

T-POST 3300 100 X 45

2400

TFB 100X45

3300

25.7Kg

PP TFB 3300 G

UB150 4000

3000

1501.0B 14.0

4000

60.1Kg

PP UB150 4000 G

RAILS

LENGTH

PALE CENTRES

CODE

ITEM NUMBER

RAIL 50 X 50 X 6 EA

2705

155

PP REA 502705G

FITTINGS - HOT DIP GALVANISED

WEIGHT

ITEM NUMBER

INTERMEDIATE FISH PLATE- 140X40X8 - 2 SLOTS

0.38KG

PP FP G

END FISH PLATE - 80X40X8 - 1 SLOT

0.38KG

PP EFP G

CORNER FISH PLATE - W SHAPE -215X40X8 -2 SLOTS

0.50KG

PP CFP

MID BAY SUPPORT - REQUIRED ON ALL FENCES OVER 2400 HIGH

M12X500 THREADED ROD 2 X M12 NUTS

0.85KG

DCRM12500H

RAIL FIXING - M12X30 CUPHEAD BOLT - 8.8 HI TENSILE

4.35KG/100

PP M12 30 HTG

RAIL FIXING - M12 SHEAR NUT

2.7KG/100

PSNM12G

RAIL FIXING - M12 WASHER

0.63KG/100

DWG12MM

PALE FIXING - M8X25 T BOLT

1.15KG/100

PP TB825G

PALE FIXING - M8 SHEAR NUT

1.3KG/100

PSNM8G

PALE FIXING - SS HUCK PIN

2.23KG/100

PSSPIN

PALE FIXING - SS COLLAR

0.67KG/100

PP SSFCOLL

PALES W SECTION - HOT DIP GALVANISED

DESCRIPTION

FENCE HEIGHT

TYPE

TOP

LENGTH

WEIGHT

ITEM NUMBER

PALISADE PALE STRAIGHT 2400

2400

STRAIGHT

TRI POINT

2350

5.64 Kg

PP PALE 2400 G

PALISADE PALE STRAIGHT 2950

3000

STRAIGHT

TRI POINT

2950

7.07Kg

PP PALE 2950 HOG

POSTS - HOT DIP GALVANISED

DESCRIPTION

FENCE HEIGHT

POST

RAILS

LENGTH

WEIGHT

ITEM NUMBER

T-POST 3300 100 X 45

2400

TFB 100X45

3300

25.7Kg

PP TFB 3300 G

UB150 4000

3000

1501.0B 14.0

4000

60.1Kg

PP UB150 4000 G

RAILS

DESCRIPTION

LENGTH

PALE CENTRES

CODE

ITEM NUMBER

RAIL 50 X 50 X 6 EA

2705

155

PP REA 502705G

FITTINGS - HOT DIP GALVANISED

DESCRIPTION

WEIGHT

ITEM NUMBER

INTERMEDIATE FISH PLATE- 140X40X8 - 2 SLOTS

0.38KG

PP FP G

END FISH PLATE - 80X40X8 - 1 SLOT

0.38KG

PP EFP G

CORNER FISH PLATE - W SHAPE -215X40X8 -2 SLOTS

0.50KG

PP CFP

MID BAY SUPPORT - REQUIRED ON ALL FENCES OVER 2400 HIGH

M12X500 THREADED ROD 2 X M12 NUTS

0.85KG

DCRM12500H

RAIL FIXING - M12X30 CUPHEAD BOLT - 8.8 HI TENSILE

4.35KG/100

PP M12 30 HTG

RAIL FIXING - M12 SHEAR NUT

2.7KG/100

PSNM12G

RAIL FIXING - M12 WASHER

0.63KG/100

DWG12MM

PALE FIXING - M8X25 T BOLT

1.15KG/100

PP TB825G

PALE FIXING - M8 SHEAR NUT

1.3KG/100

PSNM8G

PALE FIXING - SS HUCK PIN

2.23KG/100

PSSPIN

PALE FIXING - SS COLLAR

0.67KG/100

PP SSFCOLL

GATES

The Propale™ system includes matching gates using the same high quality W pale as the fence.
Single, double swing or sliding gates are available. Most common sizes include - 1.2M Pedestrian gates, 4.8M and 6M double gates.
Custom-engineered gates to match fence height and customer specifications.

W PALES FENCING SPECIFICATIONS

WARRANTY

High-Security fencing Warranty – Protective Fencing, as the manufacturer of the Propale™ security system, warrants that the products will be suitable for the propose intended and free of any manufacturing defects for ten years.

TESTING & STANDARDS

Promax fencing systems are manufactured in accordance with the following standards:
✓ BS EN 1722-12-2006 specification for steel palisade fences.
✓ AS/NZS 4100-2020 Steel structures
✓ AS/NZS 4534-2006 Zinc/Zinc Aluminium alloy coatings on steel wire.
✓ AS/NZS 2423-2002 Coated steel wire fencing products for terrestrial, aquatic and general use.
✓ AS/NZS 4680-2006 hot dip galvanised (zinc) coatings of fabricated ferrous articles.
✓ AS/NZS 4506-2005 Metal finishing – Thermoset powder coatings.

WIND LOADING
There are several wind loading factors to consider when specifying a fencing system as per AS1170.2:2011, including the region, terrain category multiplier, wind directions, shielding, topographic multipliers and post-disaster importance level.
Our fencing design has been tested against the harshest environments, and we can provide a solution for every environment.
Our fencing experts are here to help you with your design. Our experienced team will ensure that your project meets the required standards.

POWDERCOATING

Protective Powdercoating is an accredited applicator of Interpon Metaplex commercial coatings on hot-dipped galvanised steel.
• Interpon Metaplex Commercial Accredited Applicator, product warranty available depending on topcoat selection.
• Powdercoating completed per AS/NZ 4506-2005 Metal Finishing - Thermoset Powder Coatings
