DIAMOND FENCE™ FUSE BONDED CHAINWIRE WIRE MESH FENCING… AUSTRALIA’S TRUSTED NAME FOR QUALITY
DESCRIPTION
Diamond Fence ™ Fuse bonded chainwire wire mesh fencing provides considerable security whilst maintaining minimal visual impact on the surrounds.
Protective Fencing Diamond Fence ™ is the complete Chainwire fencing solution that sets the benchmark for quality delivered nationally, proudly made and manufactured in Australia since 1975.
Protective Fencing is Australia’s leading manufacturer of Chainwire wire mesh fencing. Diamond Fence can be engineered with various post confederations to suit project requirements. Fuse bonded wire has outstanding and long-lasting adhesion, and anti-corrosion and is highly recommended for locations close to saltwater.
All Diamond Fence Chainwire systems can be specified using either post and rail systems or successfully utilised as rail-less structures depending on the end user security level requirements.
KEY FEATURES
- Fast and easy installation of perimeter protection system
- Durable interlocked wire mesh, high Strength.
- High-level visibility through the fence
- Available in various post, rail, and cable wire configurations.
- Fence height from 450mm up to 5000mm.
- Technical Support team available always.
- Premium Quality wire finishes and colours- including Heavy Galvanised, colour finishes in either PVC coated or Fusion bonded PVC and lifemax wire.

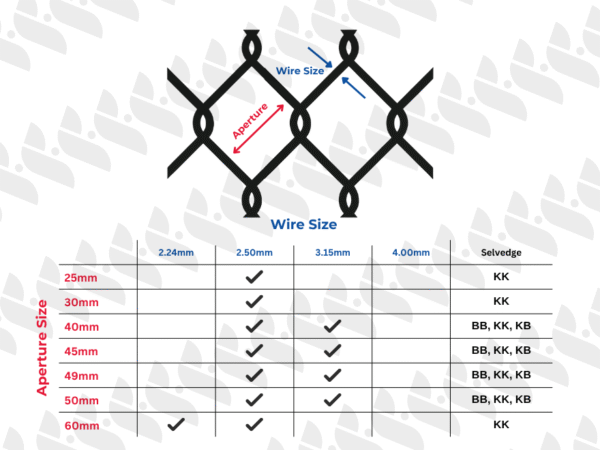

- Wire diameters of 2.24mm, 2.50mm, 3.15mm & 4.00mm
- Durable Long life and low maintenance
- 100% Australian made and manufactured to the highest specifications
- Available in stock product Ready for same-day dispatch, posts, rails, wire, wire mesh, gates and fittings.
- Confidence backed by a 10 Year Warranty
PREMIUM QUALITY
Manufacturer Direct service and quality guaranteed
AUSTRALIAN OWNED
Trusted products Made in Australia
CUSTOM SOLUTIONS
Manufactured to your specifications
GUARANTEED DELIVERY
Speedy delivery direct to site
EXTENSIVE STOCK
One stop shop, largest stockist of security fencing
FENCE SYSTEM COMPONENTS

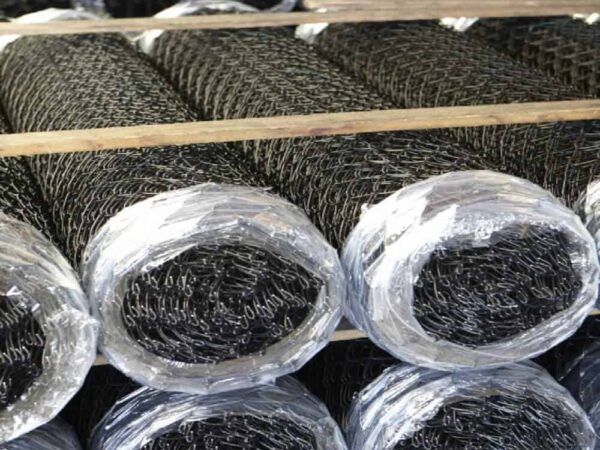

CHAINWIRE PVC COATED – BLACK / GREEN
CHAINWIRE – BLACK/ GREEN PVC – 25X2.50 MESH
DESCRIPTION
HEIGHT (MM)
MESH
SELVEDGE
STD ROLL (M)
ROLL KG
ITEM NUMBER
CHAINWIRE 25X2.50 1800H BLACK PVC KK
1800
25X2.50
KK
10
75
C180 025 250 PB KK
CHAINWIRE 25X2.50 2100H BLACK PVC KK
2100
25X2.50
KK
10
87
C210 025 250 PB KK
CHAINWIRE 25X2.50 3000H BLACK PVC KK
3000
25X2.50
KK
10
124
C300 025 250 PB KK
CHAINWIRE – BLACK/ GREEN PVC – 30X2.50 MESH
DESCRIPTION
HEIGHT (MM)
MESH
SELVEDGE
STD ROLL (M)
ROLL KG
ITEM NUMBER
CHAINWIRE 30X2.50 1500H BLACK PVC KK
1500
30X2.50
KK
10
48
C150 030 250 PB KK
CHAINWIRE 30X2.50 1800H BLACK PVC KK
1800
30X2.50
KK
10
57
C180 030 250 PB KK
CHAINWIRE 30X2.50 2400H BLACK PVC KK
2400
30X2.50
KK
10
76
C240 030 250 PB KK
CHAINWIRE 30X2.50 3000H BLACK PVC KK
3000
30X2.50
KK
10
95
C300 030 250 PB KK
CHAINWIRE 30X2.50 3600H BLACK PVC KK
3600
30X2.50
KK
10
114
C360 030 250 PB KK
CHAINWIRE – BLACK/ GREEN PVC – 40X3.15 MESH
DESCRIPTION
HEIGHT (MM)
MESH
SELVEDGE
STD ROLL (M)
ROLL KG
ITEM NUMBER
CHAINWIRE 40X3.15 2400H BLACK PVC KK
2400
40X3.15
KK
10
92
C240 040 315 PB KK
CHAINWIRE 40X3.15 3000H BLACK PVC KK
3000
40X3.15
KK
10
113
C300 040 315 PB KK
CHAINWIRE 40X3.15 3600H BLACK PVC KK
3600
40X3.15
KK
10
137
C360 040 315 PB KK
CHAINWIRE – BLACK/ GREEN PVC – 45X2.50 MESH
DESCRIPTION
HEIGHT (MM)
MESH
SELVEDGE
STD ROLL (M)
ROLL KG
ITEM NUMBER
CHAINWIRE 49X3.15 3000H BLACK PVC KK
3000
49X3.15
KK
10
102
C300 049 315 PB KK
CHAINWIRE 49X3.15 3600H BLACK PVC KK
3600
49X3.15
KK
10
114
C360 049 315 PB KK
CHAINWIRE – BLACK/ GREEN PVC – 45X3.15 MESH
DESCRIPTION
HEIGHT (MM)
MESH
SELVEDGE
STD ROLL (M)
ROLL KG
ITEM NUMBER
CHAINWIRE 45X3.15 1200H BLACK PVC KK
1200
45X3.15
KK
10
42
C120 045 315 PB KK
CHAINWIRE 45X3.15 2400H BLACK PVC KK
2400
45X3.15
KK
10
85
C240 045 315 PB KK
CHAINWIRE 45X3.15 3000H BLACK PVC KK
3000
45X3.15
KK
10
101
C300 045 315 PB KK
CHAINWIRE 45X3.15 3600H BLACK PVC KK
3600
45X3.15
KK
10
122
C360 045 315 PB KK
CHAINWIRE – BLACK/ GREEN PVC – 49X2.50 MESH
DESCRIPTION
HEIGHT (MM)
MESH
SELVEDGE
STD ROLL (M)
ROLL KG
ITEM NUMBER
CHAINWIRE 49X2.50 1200H BLACK PVC KK
1200
49X2.50
KK
15
23
C120 049 250 PB KK
CHAINWIRE 49X2.50 1800H BLACK PVC KK
1800
49X2.50
KK
15
51
C180 049 250 PB KK
CHAINWIRE 49X2.50 1900H BLACK PVC KK
1900
49X2.50
KK
15
54
C190 049 250 PB KK
CHAINWIRE 49X2.50 2100H BLACK PVC KK
2100
49X2.50
KK
15
61
C210 049 250 PB KK
CHAINWIRE 49X2.50 2400H BLACK PVC KK
2400
49X2.50
KK
15
73
C240 049 250 PB KK
CHAINWIRE 49X2.50 3000H BLACK PVC KK
3000
49X2.50
KK
10
56
C300 049 250 PB KK
CHAINWIRE 49X2.50 3600H BLACK PVC KK
3600
49X2.50
KK
10
68
C360 049 250 PB KK
CHAINWIRE – BLACK/ GREEN PVC – 49X3.15 MESH
DESCRIPTION
HEIGHT (MM)
MESH
SELVEDGE
STD ROLL (M)
ROLL KG
ITEM NUMBER
CHAINWIRE 49X3.15 3000H BLACK PVC KK
3000
49X3.15
KK
10
102
C300 049 315 PB KK
CHAINWIRE 49X3.15 3600H BLACK PVC KK
3600
49X3.15
KK
10
114
C360 049 315 PB KK
CHAINWIRE – BLACK/ GREEN PVC – 25X2.50 MESH
DESCRIPTION
HEIGHT (MM)
MESH
SELVEDGE
STD ROLL (M)
ROLL KG
ITEM NUMBER
CHAINWIRE 50X2.50 0450H BLACK PVC KK
450
50X2.50
KK
15
14
C045 050 250 PB KK
CHAINWIRE 50X2.50 0600H BLACK PVC KK
600
50X2.50
KK
15
18
C060 050 250 PB KK
CHAINWIRE 50X2.50 0750H BLACK PVC KK
750
50X2.50
KK
15
22
C075 050 250 PB KK
CHAINWIRE 50X2.50 0900H BLACK PVC KK
900
50X2.50
KK
15
26
C090 050 250 PB KK
CHAINWIRE 50X2.50 1050H BLACK PVC KK
1050
50X2.50
KK
15
30
C105 050 250 PB KK
CHAINWIRE 50X2.50 1200H BLACK PVC KB
1200
50X2.50
KB
15
34
C120 050 250 PB KB
CHAINWIRE 50X2.50 1200H BLACK PVC KK
1200
50X2.50
KK
15
33
C120 050 250 PB KK
CHAINWIRE 50X2.50 1500H BLACK PVC KB
1500
50X2.50
KB
15
41
C150 050 250 PB KB
CHAINWIRE 50X2.50 1500H BLACK PVC KK
1500
50X2.50
KK
15
41
C150 050 250 PB KK
CHAINWIRE 50X2.50 1800H BLACK PVC BB
1800
50X2.50
BB
15
49
C180 050 250 PB BB
CHAINWIRE 50X2.50 1800H BLACK PVC KB
1800
50X2.50
KB
15
49
C180 050 250 PB KB
CHAINWIRE 50X2.50 1800H BLACK PVC KK
1800
50X2.50
KK
15
49
C180 050 250 PB KK
CHAINWIRE 50X2.50 2100H BLACK PVC BB
2100
50X2.50
BB
15
57
C210 050 250 PB BB
CHAINWIRE 50X2.50 2100H BLACK PVC KB
2100
50X2.50
KB
15
57
C210 050 250 PB KB
CHAINWIRE 50X2.50 2100H BLACK PVC KK
2100
50X2.50
KK
15
57
C210 050 250 PB KK
CHAINWIRE 50X2.50 2400H BLACK PVC KB
2400
50X2.50
KB
15
69
C240 050 250 PB KB
CHAINWIRE 50X2.50 2400H BLACK PVC KK
2400
50X2.50
KK
15
69
C240 050 250 PB KK
CHAINWIRE 50X2.50 2700H BLACK PVC KK
2700
50X2.50
KK
15
77
C270 050 250 PB KK
CHAINWIRE 50X2.50 3000H BLACK PVC KB
3000
50X2.50
KB
10
57
C300 050 250 PB KB
CHAINWIRE 50X2.50 3000H BLACK PVC KK
3000
50X2.50
KK
10
57
C300 050 250 PB KK
CHAINWIRE 50X2.50 3600H BLACK PVC KK
3600
50X2.50
KK
10
67
C360 050 250 PB KK
CHAINWIRE – BLACK/ GREEN PVC – 50X3.15 MESH
DESCRIPTION
HEIGHT (MM)
MESH
SELVEDGE
STD ROLL (M)
ROLL KG
ITEM NUMBER
CHAINWIRE 50X3.15 0600H BLACK PVC KK
600
50X3.15
KK
15
24
C060 050 315 PB KK
CHAINWIRE 50X3.15 0900H BLACK PVC KK
900
50X3.15
KK
15
43
C090 050 315 PB KK
CHAINWIRE 50X3.15 1050H BLACK PVC KK
1050
50X3.15
KK
15
48
C105 050 315 PB KK
CHAINWIRE 50X3.15 1200H BLACK PVC KK
1200
50X3.15
KK
15
55
C120 050 315 PB KK
CHAINWIRE 50X3.15 1500H BLACK PVC KB
1500
50X3.15
KB
15
74
C150 050 315 PB KB
CHAINWIRE 50X3.15 1500H BLACK PVC KK
1500
50X3.15
KK
15
74
C150 050 315 PB KK
CHAINWIRE 50X3.15 1800H BLACK PVC BB
1800
50X3.15
BB
10
55
C180 050 315 PB BB
CHAINWIRE 50X3.15 1800H BLACK PVC KB
1800
50X3.15
KB
10
55
C180 050 315 PB KB
CHAINWIRE 50X3.15 1800H BLACK PVC KK
1800
50X3.15
KK
10
55
C180 050 315 PB KK
CHAINWIRE 50X3.15 2100H BLACK PVC KB
2100
50X3.15
KB
10
64
C210 050 315 PB KB
CHAINWIRE 50X3.15 2100H BLACK PVC KK
2100
50X3.15
KK
10
64
C210 050 315 PB KK
CHAINWIRE 50X3.15 2400H BLACK PVC KB
2400
50X3.15
KB
10
73
C240 050 315 PB KB
CHAINWIRE 50X3.15 2400H BLACK PVC KK
2400
50X3.15
KK
10
73
C240 050 315 PB KK
CHAINWIRE 50X3.15 2700H BLACK PVC KK
2700
50X3.15
KK
10
83
C270 050 315 PB KK
CHAINWIRE 50X3.15 3000H BLACK PVC KK
3000
50X3.15
KK
10
93
C300 050 315 PB KK
CHAINWIRE 50X3.15 3600H BLACK PVC KK
3600
50X3.15
KK
10
110
C360 050 315 PB KK
CHAINWIRE – BLACK/ GREEN PVC – 60X2.50 MESH
DESCRIPTION
HEIGHT (MM)
MESH
SELVEDGE
STD ROLL (M)
ROLL KG
ITEM NUMBER
CHAINWIRE 60X2.50 0900H BLACK PVC KK
900
60X2.50
KK
15
21
C090 060 250 PB KK
CHAINWIRE 60X2.50 1200H BLACK PVC KK
1200
60X2.50
KK
15
29
C120 060 250 PB KK
CHAINWIRE 60X2.50 1500H BLACK PVC KK
1500
60X2.50
KK
15
35
C150 060 250 PB KK
CHAINWIRE 60X2.50 1800H BLACK PVC KB
1800
60X2.50
KB
15
41
C180 060 250 PB KB
CHAINWIRE 60X2.50 1800H BLACK PVC KK
1800
60X2.50
KK
15
41
C180 060 250 PB KK
Should this just be powder coated posts?
GALVANISED PIPE – EXTRA LIGHT (GREEN END)
DESCRIPTION
NB
LENGTH
WALL OF THICKNESS
WEIGHT (KG)
SLING
POWDERCOATING
STOCKED
ITEM NUMBER
25NB 6500MM EXTRA LIGHT GAL PIPE
25
6500
X LIGHT
10.5
91
AVAILABLE
YES
PIPE 25NB 65 XL
25NB 7200MM EXTRA LIGHT GAL PIPE
25
7200
X LIGHT
11.7
91
AVAILABLE
YES
PIPE 25NB 72 XL
32NB 6500MM EXTRA LIGHT GAL PIPE
32
6500
X LIGHT
13.5
61
AVAILABLE
YES
PIPE 32NB 65 XL
32NB 7200MM EXTRA LIGHT GAL PIPE
32
7200
X LIGHT
14.9
61
AVAILABLE
YES
PIPE 32NB 72 XL
40NB 6500MM EXTRA LIGHT GAL PIPE
40
6500
X LIGHT
17.6
61
AVAILABLE
YES
PIPE 40NB 65 XL
40NB 7200MM EXTRA LIGHT GAL PIPE
40
7200
X LIGHT
19.4
61
AVAILABLE
YES
PIPE 40NB 72 XL
50NB 6500MM EXTRA LIGHT GAL PIPE
50
6500
X LIGHT
22.1
37
AVAILABLE
YES
PIPE 50NB 65 XL
50NB 7200MM EXTRA LIGHT GAL PIPE
50
7200
X LIGHT
24.5
37
AVAILABLE
YES
PIPE 50NB 72 XL
80NB 6500MM EXTRA LIGHT GAL PIPE
80
6500
X LIGHT
37.1
19
AVAILABLE
YES
PIPE 80NB 65 XL
GALVANISED PIPE – LIGHT (YELLOW END)
DESCRIPTION
20NB 6500MM LIGHT GAL PIPE
25NB 6500MM LIGHT GAL PIPE
32NB 6500MM LIGHT GAL PIPE
32NB 7200MM LIGHT GAL PIPE
40NB 6500MM LIGHT GAL PIPE
40NB 7200MM LIGHT GAL PIPE
50NB 6500MM LIGHT GAL PIPE
65NB 6500MM LIGHT GAL PIPE
80NB 6500MM LIGHT GAL PIPE
NB
20
25
32
32
40
40
50
65
80
LENGTH
6500
6500
6500
7200
6500
7200
6500
6500
6500
PIPE
LIGHT
LIGHT
LIGHT
LIGHT
LIGHT
LIGHT
LIGHT
LIGHT
LIGHT
WEIGHT (KG)
9.6
13.4
17.1
19.2
21.7
24.4
27.4
39.0
45.0
SLING
91
91
61
61
61
61
37
37
19
STOCKED
YES
YES
YES
YES
YES
YES
YES
YES
YES
POWDERCOATING
AVAILABLE
AVAILABLE
AVAILABLE
AVAILABLE
AVAILABLE
AVAILABLE
AVAILABLE
AVAILABLE
AVAILABLE
ITEM NUMBER
PIPE 20NB 65 GLPE
PIPE 25NB 65 GLPE
PIPE 32NB 65 GLPE
PIPE 32NB 72 GLPE
PIPE 40NB 65 GLPE
PIPE 40NB 72 GLPE
PIPE 50NB 65 GLPE
PIPE 65NB 65 GLPE
PIPE 80NB 65 GLPE
GALVANISED PIPE – MEDIUM (BLUE END)
DESCRIPTION
25NB 6500MM MEDIUM GAL PIPE
32NB 6500MM MEDIUM GAL PIPE
32NB 7200MM MEDIUM GAL PIPE
40NB 6500MM MEDIUM GAL PIPE
40NB 7200MM MEDIUM GAL PIPE
50NB 6500MM MEDIUM GAL PIPE
50NB 7200MM MEDIUM GAL PIPE
65NB 6500MM MEDIUM GAL PIPE
80NB 6500MM MEDIUM GAL PIPE
90NB 6500MM MEDIUM GAL PIPE
100NB 6500MM MEDIUM GAL PIPE
NB
25
32
32
40
40
50
50
65
80
90
100
LENGTH
6500
6500
7200
6500
7200
6500
7200
6500
6500
6500
6500
PIPE
MEDIUM
MEDIUM
MEDIUM
MEDIUM
MEDIUM
MEDIUM
MEDIUM
MEDIUM
MEDIUM
MEDIUM
MEDIUM
WEIGHT (KG)
16.1
20.7
23.3
23.7
26.5
33.4
45.6
43.2
55.5
81.0
80.6
SLING
91
61
61
61
61
37
37
19
19
19
19
STOCKED
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
POWDERCOATING
AVAILABLE
AVAILABLE
AVAILABLE
AVAILABLE
AVAILABLE
AVAILABLE
AVAILABLE
AVAILABLE
AVAILABLE
AVAILABLE
AVAILABLE
ITEM NUMBER
PIPE 25NB 65 GMPE
PIPE 32NB 65 GMPE
PIPE 32NB 72 GMPE
PIPE 40NB 65 GMPE
PIPE 40NB 72 GMPE
PIPE 50NB 65 GMPE
PIPE 50NB 72 GMPE
PIPE 65NB 65 GMPE
PIPE 80NB 65 GMPE
PIPE 90NB 65 GMPE
PIPE 100NB 65 GMPE
SECURITY FENCING GUIDE – 1800MM HIGH CHAINWIRE FENCING WITH 3 ROWS BARBED WIRE
INTERMEDIATE POSTS – 3 X POST INDENTS WIRE – COMPLIES TO AS1074
DESCRIPTION
POST STRAIGHT- 32NB - XL - 3000
POST BENT 45° - 32NB - XL - 3000
POST STRAIGHT- 32NB - XL - 3250
POST BENT 45° - 32NB - XL - 3250
POST STRAIGHT- 32NB - LIGHT - 3250
POST BENT 45° - 32NB - LIGHT - 3250
POST STRAIGHT- 32NB - MED - 3250
POST BENT 45° - 40NB - MED - 3250
POST BENT 45° - 50NB - MED - 3250
DESCRIPTION
STRAIGHT
BENT (45°)
STRAIGHT
BENT (45°)
STRAIGHT
BENT (45°)
STRAIGHT
BENT (45°)
BENT (45°)
PIPE
32NB
32NB
32NB
32NB
40NB
40NB
40NB
40NB
50NB
GRADE
X LIGHT
X LIGHT
X LIGHT
X LIGHT
LIGHT
LIGHT
MEDIUM
MEDIUM
MEDIUM
LENGTH
3000mm
3000mm
3250mm
3250mm
3250mm
3250mm
3250mm
3250mm
3250mm
STOCKED
YES
YES
NO
NO
NO
NO
NO
NO
NO
WEIGHT (KG)
6.3
6.3
6.7
6.7
10.8
10.8
11.9
11.9
16.7
ITEM NUMBER
PST SX 32NB 3B 3000
PST BX 32NB 3B 3000
PST SX 32NB 3B 3250
PST BX 32NB 3B 3250
PST SL 40NB 3B 3250
PST BL 40NB 3B 3250
PST SM 40NB 3B 3250
PST BM 40NB 3B 3250
PST BM 50NB 3B 3250
CORNER & GATE POSTS – 3 X POST IDENTS FOR BARBED WIRE – COMPLIES TO AS1074
DESCRIPTION
POST STRAIGHT - 50NB - XL - 3250
POST BENT 55° - 50NB - XL - 3250
POST STRAIGHT - 50NB - LIGHT - 3250
POST BENT 55° - 50NB - LIGHT - 3200
POST STRAIGHT - 50NB - MED - 3250
POST BENT 55° - 50NB - MED - 3250
POST STRAIGHT - 80NB - LIGHT - 3250
POST STRAIGHT - 100NB - LIGHT - 3250
POST STRAIGHT TWIN - 2X80NB - LIGHT - 3250
POST STRAIGHT TRIPLE - 3X80NB - LIGHT - 3250
DESCRIPTION
STRAIGHT
BENT (55°)
STRAIGHT
BENT (55°)
STRAIGHT
BENT (55°)
STRAIGHT
STRAIGHT
STRAIGHT TWIN
STRAIGHT TRIPLE
PIPE
50NB
50NB
50NB
50NB
50NB
50NB
80NB
100NB
2 X 80NB
3 X 80NB
GRADE
X LIGHT
X LIGHT
LIGHT
LIGHT
MEDIUM
MEDIUM
LIGHT
MEDIUM
LIGHT
LIGHT
LENGTH
3250mm
3250mm
3250mm
3250mm
3250mm
3250mm
3250mm
3250mm
3250mm
3250mm
STOCKED
YES
YES
NO
YES
NO
NO
YES
NO
YES
YES
WEIGHT (KG)
11.1
11.1
13.7
13.7
16.7
16.7
22.5
40.3
46.4
74.4
ITEM NUMBER
PST SX 50NB 3B 3250
PST BX 50NB 3B 3250A
PST SL 50NB 3B 3250
PST BL 50NB 3B 3250A
PST SM 50NB 3B 3250
PST BM 50NB 3B 3250A
PST SL 80NB 3B 3250
PST SM 100NB 3B 3250
PST SL2X80 3B 3250
PST SL3X80 3B 3250
STAYS – COMPLIES TO AS1074
DESCRIPTION
STAY - BACK STAY BENT - 25NB - XL - 2130
STAY - STRAIGHT - 32NB - XL - 3600
DESCRIPTION
BACK STAY BENT
STRAIGHT
PIPE
25NB
32NB
GRADE
X LIGHT
X LIGHT
LENGTH
2130mm
3600mm
STOCKED
NO
YES
WEIGHT (KG)
3.5
7.5
ITEM NUMBER
STY XL 25NB 2130 B
STY XL 32NB 3600
SECURITY FENCING GUIDE – 2100MM HIGH CHAINWIRE FENCING WITH 3 ROWS BARBED WIRE
INTERMEDIATE POSTS – 3 X POST INDENTS FOR BARBED WIRE – COMPLIES TO AS1074
DESCRIPTION
STRAIGHT POST - 32NB - XL - 3250
BENT POST 45° - 32NB - XL - 3250
STRAIGHT POST - 40NB - LIGHT - 3250
BENT POST 45° - 40NB - LIGHT - 3250
STRAIGHT POST - 40NB - MED - 3250
DESCRIPTION
STRAIGHT
BENT (45°)
STRAIGHT
BENT (45°)
STRAIGHT
PIPE
32NB
32NB
40NB
40NB
40NB
GRADE
X LIGHT
X LIGHT
LIGHT
LIGHT
MEDIUM
LENGTH
3250
3250
3250
3250
3250
STOCKED
NO
NO
NO
NO
NO
WEIGHT (KG)
6.7
6.7
10.8
10.8
11.9
ITEM NUMBER
PST SX 32NB 3B 3250
PST BX 32NB 3B 3250
PST SL 40NB 3B 3250
PST BL 40NB 3B 3250
PST SM 40NB 3B 3250
CORNER & GATE POSTS – 3 X POST INDENTS FOR BARBED WIRE – COMPLIES TO AS1074
DESCRIPTION
CORNER POST - STRAIGHT - 50NB - XL - 3500
CORNER POST - BENT 55° - 50NB - XL - 3500
CORNER POST - STRAIGHT - 50NB - LIGHT - 3500
CORNER POST - BENT 55° - 50NB - LIGHT - 3500
CORNER POST - STRAIGHT - 50NB - MED - 3500
CORNER POST - STRAIGHT - 80NB - LIGHT - 3500
CORNER POST - BENT 45° - 80NB - LIGHT - 3500
CORNER POST - STRAIGHT - 100NB - MED - 3500
CORNER POST - STRAIGHT TRIPLE - 3X80NB - LIGHT - 3500
CORNER POST - STRAIGHT TWIN - 2X80NB - LIGHT - 3501
DESCRIPTION
STRAIGHT
BENT (55°)
STRAIGHT
BENT (55°)
STRAIGHT
STRAIGHT
BENT (45°)
STRAIGHT
STRAIGHT TWIN
STRAIGHT TRIPLE
PIPE
50NB
50NB
50NB
50NB
50NB
80NB
80NB
100NB
2 X 80NB
3 X 80NB
GRADE
X LIGHT
X LIGHT
LIGHT
LIGHT
MEDIUM
LIGHT
LIGHT
MEDIUM
LIGHT
LIGHT
LENGTH
3500
3500
3500
3500
3500
3500
3500
3500
3500
3500
STOCKED
NO
NO
NO
NO
NO
NO
NO
NO
NO
NO
WEIGHT (KG)
11.9
11.9
14.7
14.7
18.0
24.2
24.2
43.4
51.5
79.0
ITEM NUMBER
PST SX 50NB 3B 3500
PST BX 50NB 3B 3500A
PST SL 50NB 3B 3500
PST BL 50NB 3B 3500A
PST SM 50NB 3B 3500
PST SL 80NB 3B 3500
PST BM 80NB 3B 3500
PST SM 100NB 3B 3500
PST SL2X80NB 3B 3500
PST SL3X80NB 3B 3500
STAYS – COMPLIES TO AS1074
DESCRIPTION
STAY - BACK STAY BENT - 25NB - XL - 2130
STAY - STRAIGHT - 32NB - XL - 3600
DESCRIPTION
BACK STAY BENT
STRAIGHT
PIPE
25NB
32NB
GRADE
X LIGHT
X LIGHT
LENGTH
2130mm
3600mm
STOCKED
NO
YES
WEIGHT (KG)
3.5
7.5
ITEM NUMBER
STY XL 25NB 2130 B
STY XL 32NB 3600
Should this just be PC?
SINGLE SECURITY GATES – 1800 HIGH + 3 ROWS BARBED WIRE (2310)
DESCRIPTION
GATE WIDTH (MM)
GATE HEIGHT (MM)
FRAME
MESH (MM)
FINISH
STOCKED
ITEM NUMBER
GALVANISED FRAME – PVC CHAINWIRE & LACING
S/GATE GAL FRAME 25NB 1800 X 900 - 50 X 2.5/3.15 BLK PVC MESH
S/GATE GAL FRAME 25NB 1800 X 1200 - 50 X 2.5/3.15 BLK PVC MESH
S/GATE GAL FRAME 25NB 1800 X 1500 - 50 X 2.5/3.15 BLK PVC MESH
S/GATE GAL FRAME 32NB 1800 X 1500 - 50 X 2.5/3.15 BLK PVC MESH
1800
1800
1800
1800
900
1200
1500
1500
25NB
25NB
25NB
32NB
50 X 2.5/3.15
50 X 2.5/3.15
50 X 2.5/3.15
50 X 2.5/3.15
GAL FRAME / PVC CHAINWIRE
GAL FRAME / PVC CHAINWIRE
GAL FRAME / PVC CHAINWIRE
GAL FRAME / PVC CHAINWIRE
NO
NO
NO
NO
GS1PVC
GS3PVC
GS4PVC
GS7PVC
FULL COLOUR – POWDERCOATED FRAME – PVC COATED CHAINWIRE & LACING
S/GATE BLK FRAME 25NB 1800 X 900 - 50 X 2.5/3.15 BLK PVC MESH
S/GATE BLK FRAME 25NB 1800 X 1200 - 50 X 2.5/3.15 BLK PVC MESH
S/GATE BLK FRAME 25NB 1800 X 1500 - 50 X 2.5/3.15 BLK PVC MESH
S/GATE BLK FRAME 32NB 1800 X 1500 - 50 X 2.5/3.15 BLK PVC MESH
1800
1800
1800
1800
900
1200
1500
1500
25NB
25NB
25NB
32NB
50 X 2.5/3.15
50 X 2.5/3.15
50 X 2.5/3.15
50 X 2.5/3.15
P/COAT FRAME / PVC CHAINWIRE
P/COAT FRAME / PVC CHAINWIRE
P/COAT FRAME / PVC CHAINWIRE
P/COAT FRAME / PVC CHAINWIRE
YES(LH)
NO
NO
NO
GS1FC
GS3FC
GS4FC
GS7FC
DOUBLE DOMESTIC GATES – 900 TO 1200 HIGH
DESCRIPTION
GATE WIDTH (MM)
GATE HEIGHT (MM)
FRAME
MESH (MM)
FINISH
STOCKED
ITEM NUMBER
GALVANISED FRAME + PVC COATED CHAINWIRE & LACING
D/GATE GAL FRAME 25NB 900 X 3000 - 50 X 2.5/3.15 - BLK PVC MESH
D/GATE GAL FRAME 25NB 900 X 6000 - 50 X 2.5/3.15 - BLK PVC MESH
D/GATE GAL FRAME 25NB 1200 X 3000 - 50 X 2.5/3.15 - BLK PVC MESH
D/GATE GAL FRAME 25NB 1200 X 6000 - 50 X 2.5/3.15 - BLK PVC MESH
900
900
1200
1200
3000 (2 X 1500)
6000 (2 X 3000)
3000 (2 X 1500)
6000 (2 X 3000)
25NB
25NB
25NB
25NB
50 X 2.5/3.15
50 X 2.5/3.15
50 X 2.5/3.15
50 X 2.5/3.15
GAL FRAME / PVC CHAINWIRE
GAL FRAME / PVC CHAINWIRE
GAL FRAME / PVC CHAINWIRE
GAL FRAME / PVC CHAINWIRE
NO
NO
NO
NO
GD18PVC
GD20PVC
GD24PVC
GD26PVC
FULL COLOUR – POWDERCOATED FRAME + PVC COATED CHAINWIRE & LACING
D/GATE BLK FRAME 25NB 900 X 3000 - 50 X 2.5/3.15 - BLK PVC MESH
D/GATE BLK FRAME 25NB 900 X 6000 - 50 X 2.5/3.15 - BLK PVC MESH
D/GATE BLK FRAME 25NB 1200 X 3000 - 50 X 2.5/3.15 - BLK PVC MESH
D/GATE BLK FRAME 25NB 1200 X 6000 - 50 X 2.5/3.15 - BLK PVC MESH
900
900
1200
1200
3000 (2 X 1500)
6000 (2 X 3000)
3000 (2 X 1500)
6000 (2 X 3000)
25NB
25NB
25NB
25NB
50 X 2.5/3.15
50 X 2.5/3.15
50 X 2.5/3.15
50 X 2.5/3.15
FULL COLOUR
FULL COLOUR
FULL COLOUR
FULL COLOUR
NO
NO
NO
NO
GD18FC
GD20FC
GD24FC
GD26FC
SINGLE SECURITY GATES – 1500 HIGH + 3 ROWS BARBED WIRE (2310)
DESCRIPTION
GATE WIDTH (MM)
GATE HEIGHT (MM)
FRAME
MESH (MM)
FINISH
STOCKED
ITEM NUMBER
GALVANISED FRAME – COATED CHAINWIRE & LACING
S/GATE GAL FRAME 25NB 1500 X 900 - 50 X 2.5/3.15 - BLK PVC MESH
S/GATE GAL FRAME 25NB 1800 X 1200 - 50 X 2.5/3.15 - BLK PVC MESH
S/GATE GAL FRAME 25NB 1800 X 1500 - 50 X 2.5/3.15 - BLK PVC MESH
S/GATE GAL FRAME 25NB 1800 X 900 - 50 X 2.5/3.15 - BLK PVC MESH
S/GATE GAL FRAME 25NB 1800 X 1200 - 50 X 2.5/3.15 - BLK PVC MESH
S/GATE GAL FRAME 25NB 1800 X 1500 - 50 X 2.5/3.15 - BLK PVC MESH
S/GATE GAL FRAME 25NB 1800 X 1070 - 49 X 2.5/3.15 - BLK PVC MESH
1500
1800
1800
1800
1800
1800
1980
900
1200
1500
900
1200
1500
1070
25NB
25NB
25NB
25NB
25NB
25NB
25NB
50X2.5
50X2.5
50X2.5
50X2.5
50X2.5
50X2.5
49X2.5
GAL FRAME / PVC CHAINWIRE
GAL FRAME / PVC CHAINWIRE
GAL FRAME / PVC CHAINWIRE
GAL FRAME / PVC CHAINWIRE
GAL FRAME / PVC CHAINWIRE
GAL FRAME / PVC CHAINWIRE
GAL FRAME / PVC CHAINWIRE
NO
NO
NO
NO
NO
NO
NO
GS28PVC
GS29PVC
GS31PVC
GS34PVC
GS35PVC
GS36PVC
# GS40PVC
FULL COLOUR • POWDERCOATED
S/GATE BLK FRAME 25NB 1500 X 900 - 50 X 2.5/3.15 - BLK PVC MESH
S/GATE BLK FRAME 25NB 1500 X 1200 - 50 X 2.5/3.15 - BLK PVC MESH
S/GATE BLK FRAME 25NB 1500 X 1500 - 50 X 2.5/3.15 - BLK PVC MESH
S/GATE BLK FRAME 25NB 1800 X 900 - 50 X 2.5/3.15 - BLK PVC MESH
S/GATE BLK FRAME 25NB 1800 X 1200 - 50 X 2.5/3.15 - BLK PVC MESH
S/GATE BLK FRAME 25NB 1800 X 1500 - 50 X 2.5/3.15 - BLK PVC MESH
S/GATE BLK FRAME 25NB 1980 X 1070 - 49 X 2.5/3.15 - BLK PVC MESH
1500
1500
1500
1800
1800
1800
1980
900
1200
1500
900
1200
1500
1070
25NB
25NB
25NB
25NB
25NB
25NB
25NB
50X2.5
50X2.5
50X2.5
50X2.5
50X2.5
50X2.5
49X2.5
FULL COLOUR
FULL COLOUR
FULL COLOUR
FULL COLOUR
FULL COLOUR
FULL COLOUR
FULL COLOUR
NO
NO
NO
NO
NO
NO
YES(LH)
GS28FC
GS29FC
GS31FC
GS34FC
GS35FC
GS36FC
GS40FC
DOUBLE SECURITY GATES – 1800 HIGH + 3 ROWS BARBED WIRE (2310)
DESCRIPTION
GATE WIDTH (MM)
GATE HEIGHT (MM)
FRAME
MESH (MM)
FINISH
STOCKED
ITEM NUMBER
GALVANISED FRAME – PVC COATED CHAINWIRE & LACING
D/GATE BLK FRAME 25NB 3000 X 2310 - 50 X 2.5/3.15 - BLK PVC MESH
D/GATE BLK FRAME 25NB 4200 X 2310 - 50 X 2.5/3.15 - BLK PVC MESH
D/GATE BLK FRAME 25NB 6000 X 2310 - 50 X 2.5/3.15 - BLK PVC MESH
D/GATE BLK FRAME 25NB 8400 X 2310 - 50 X 2.5/3.15 - BLK PVC MESH
3000 (2 X 1500)
4200 (2 X 2100)
6000 (2 X 3000)
8400 (2 X 4200)
2310
2310
2310
2310
32NB
32NB
32NB
32NB
50 X 2.5/3.15
50 X 2.5/3.15
50 X 2.5/3.15
50 X 2.5/3.15
GAL FRAME / PVC CHAINWIRE
GAL FRAME PVC CHAINWIRE
GAL FRAME PVC CHAINWIRE
GAL FRAME / PVC CHAINWIRE
NO
NO
NO
NO
GD7PVC
GD9PVC
GD12PVC
GD14PVC
FULL COLOUR – POWDERCOATED FRAME – PVC COATED CHAINWIRE & LACING
D/GATE GAL FRAME 25NB 3000 X 2310 - 50 X 2.5/3.15 - BLK PVC MESH
D/GATE GAL FRAME 25NB 4200 X 2310 - 50 X 2.5/3.15 - BLK PVC MESH
D/GATE GAL FRAME 25NB 6000 X 2310 - 50 X 2.5/3.15 - BLK PVC MESH
D/GATE GAL FRAME 25NB 8400 X 2310 - 50 X 2.5/3.15 - BLK PVC MESH
3000 (2 X 1500)
4200 (2 X 2100)
6000 (2 X 3000)
8400 (2 X 4200)
2310
2310
2310
2310
32NB
32NB
32NB
32NB
50 X 2.5/3.15
50 X 2.5/3.15
50 X 2.5/3.15
50 X 2.5/3.15
FULL COLOUR
FULL COLOUR
FULL COLOUR
FULL COLOUR
NO
NO
YES
NO
GD7FC
GD9FC
GD12FC
GD14FC
SINGLE HEAVY DUTY GATES – PLAIN TOP – 1800 HIGH
DESCRIPTION
GATE WIDTH (MM)
GATE HEIGHT (MM)
FRAME
MESH (MM)
FINISH
STOCKED
ITEM NUMBER
GALVANISED FRAME – PVC COATED CHAINWIRE & LACING
S/GATE GAL FRAME 32NB - 900 X 1800 - 50 X 2.5/3.15 - BLK PVC MESH
900
1800
32NB
50X2.5
GAL FRAME / PVC CHAINWIRE
NO
GS41PVC
FULL COLOUR – POWDERCOATED FRAME – PVC COATED – CHAINWIRE & LACING
FULL COLOUR - POWDERCOATED FRAME - PVC COATED - CHAINWIRE & LACING
900
1800
FULL COLOUR
50X2.5
FULL COLOUR
NO
GS41FC
DOUBLE HEAVY DUTY GATES – PLAIN TOP – 1800 HIGH
DESCRIPTION
GATE WIDTH (MM)
GATE HEIGHT (MM)
FRAME
MESH (MM)
FINISH
STOCKED
ITEM NUMBER
GALVANISED FRAME – COATED CHAINWIRE & LACING
D/GATE GAL FRAME 32NB 3000 X 1800 - 50 X 2.5/3.15 - BLK PVC MESH
D/GATE GAL FRAME 32NB 6000 X 1800 - 50 X 2.5/3.15 - BLK PVC MESH
3000 (2 X 1500)
6000 (2 X 3000)
1800
1800
32NB
32NB
50X2.5
50X2.5
GAL FRAME PVC CHAINWIRE
GAL FRAME PVC CHAINWIRE
NO
NO
GD42PVC
GD47PVC
FULL COLOUR • POWDERCOATED FRAME + PVC COATED CHAINWIRE & LACING
D/GATE BLK FRAME 32NB 3000 X 1800 - 50 X 2.5/3.15 - BLK PVC MESH
D/GATE BLK FRAME 32NB 6000 X 1800 - 50 X 2.5/3.15 - BLK PVC MESH
3000 (2 X 1500)
6000 (2 X 3000)
1800
1800
32NB
32NB
50X2.5
50X2.5
FULL COLOUR
FULL COLOUR
NO
NO
GD42FC
GD47FC
SINGLE DOMESTIC GATES 900-1200 HIGH
DESCRIPTION
GATE WIDTH (MM)
GATE HEIGHT (MM)
FRAME
MESH (MM)
FINISH
STOCKED
ITEM NUMBER
GALVANISED FRAME + PVC COATED CHAINWIRE & LACING
S/GATE GAL FRAME 25NB 900 X 900 - 50 X 2.5/3.15 - BLK PVC MESH
S/GATE GAL FRAME 25NB 900 X 1200 - 50 X 2.5/3.15 - BLK PVC MESH
S/GATE GAL FRAME 25NB 1500 X 900 - 50 X 2.5/3.15 - BLK PVC MESH
S/GATE GAL FRAME 25NB 900 X 1200 - 50 X 2.5/3.15 - BLK PVC MESH
S/GATE GAL FRAME 25NB 1200 X 1200 - 50 X 2.5/3.15 - BLK PVC MESH
S/GATE GAL FRAME 25NB 1500 X 1200 - 50 X 2.5/3.15 - BLK PVC MESH
900
1200
1500
900
1200
1500
900
900
900
1200
1200
1200
25NB
25NB
25NB
25NB
25NB
25NB
50 X 2.513.15
50 X 2.513.15
50 X 2.513.15
50 X 2.513.15
50 X 2.513.15
50 X 2.513.15
GAL FRAME / PVC CHAINWIRE
GAL FRAME / PVC CHAINWIRE
GAL FRAME / PVC CHAINWIRE
GAL FRAME / PVC CHAINWIRE
GAL FRAME / PVC CHAINWIRE
GAL FRAME / PVC CHAINWIRE
NO
NO
NO
NO
NO
NO
GS16PVC
GS17PVC
GS18PVC
GS22PVC
GS23PVC
GS24PVC
FULL COLOUR – POWDERCOATED FRAME + PVC COATED CHAINWIRE & LACING
S/GATE BLK FRAME 25NB 900 X 900 - 50 X 2.5/3.15 - BLK PVC MESH
S/GATE BLK FRAME 25NB 1200 X 900 - 50 X 2.5/3.15 - BLK PVC MESH
S/GATE BLK FRAME 25NB 1500 X 900 - 50 X 2.5/3.15 - BLK PVC MESH
S/GATE BLK FRAME 25NB 900 X 1200 - 50 X 2.5/3.15 - BLK PVC MESH
S/GATE BLK FRAME 25NB 1200 X 1200 - 50 X 2.5/3.15 - BLK PVC MESH
S/GATE BLK FRAME 25NB 1500 X 900 - 50 X 2.5/3.15 - BLK PVC MESH
900
1200
1500
900
1200
1500
900
900
900
1200
1200
1200
25NB
25NB
25NB
25NB
25NB
25NB
50 X 2.513.15
50 X 2.513.15
50 X 2.513.15
50 X 2.513.15
50 X 2.513.15
50 X 2.513.15
FULL COLOUR
FULL COLOUR
FULL COLOUR
FULL COLOUR
FULL COLOUR
FULL COLOUR
NO
NO
NO
NO
NO
NO
GS16FC
GS17FC
GS18FC
GS22FC
GS23FC
GS24FC
DESCRIPTION
GATE WIDTH (MM)
GATE HEIGHT (MM)
FRAME
MESH (MM)
FINISH
STOCKED
ITEM NUMBER
GALVANISED FRAME + PVC COATED CHAINWIRE & LACING
D/GATE BLK FRAME 32NB 3600 X 1500 - 50 X 2.5/3.15 - BLK PVC MESH
D/GATE BLK FRAME 32NB 3000 X 1800 - 50 X 2.5/3.15 - BLK PVC MESH
D/GATE BLK FRAME 32NB 4000 X 1800 - 50 X 2.5/3.15 - BLK PVC MESH
D/GATE BLK FRAME 32NB 6000 X 1800 - 50 X 2.5/3.15 - BLK PVC MESH
D/GATE BLK FRAME 32NB 3000 X 1980 - 50 X 2.5/3.15 - BLK PVC MESH
3600 (2 X 1800)
3000 (2 X 1500)
4000 (2 X 2000)
6000 (2 X 3000)
3000 (2 X 1500)
1500
1800
1800
1800
1980
25NB
25NB
25NB
25NB
25NB
50 X 2.513.15
50 X 2.513.15
50 X 2.513.15
50 X 2.513.15
49X2.5
GAL FRAME / PVC CHAINWIRE
GAL FRAME / PVC CHAINWIRE
GAL FRAME / PVC CHAINWIRE
GAL FRAME / PVC CHAINWIRE
NO
NO
NO
NO
GD31PVC
GD36PVC
GD38PVC
GD39PVC
# GD40PVC
FULL COLOUR – POWDERCOATED FRAME + PVC COATED CHAINWIRE & LACING
D/GATE BLK FRAME 32NB 3600 X 1500 - 50 X 2.5/3.15 - BLK PVC MESH
D/GATE BLK FRAME 32NB 3000 X 1800 - 50 X 2.5/3.15 - BLK PVC MESH
D/GATE BLK FRAME 32NB 4000 X 1800 - 50 X 2.5/3.15 - BLK PVC MESH
D/GATE BLK FRAME 32NB 6000 X 1800 - 50 X 2.5/3.15 - BLK PVC MESH
D/GATE BLK FRAME 32NB 3000 X 1980 - 50 X 2.5/3.15 - BLK PVC MESH
3600 (2 X 1800)
3000 (2 X 1500)
4000 (2 X 2000)
6000 (2 X 3000)
3000 (2 X 1500)
1500
1800
1800
1800
1980
25NB
25NB
25NB
25NB
25NB
50 X 2.513.15
50 X 2.513.15
50 X 2.513.15
50 X 2.513.15
49X2.5
FULL COLOUR
FULL COLOUR
FULL COLOUR
FULL COLOUR
FULL COLOUR
NO
NO
NO
NO
NO
GD31FC
GD36FC
GD38FC
GD39FC
# GD40FC
CHAINWIRE FUSION BONDED BLACK PVC
CHAINWIRE – FUSION BONDED BLACK PVC – 49X2.50 MESH
DESCRIPTION
HEIGHT (MM)
MESH
SELVEDGE
STD ROLL (M)
ROLL KG
ITEM NUMBER
Chainwire 49X2.50 1200H FB BLACK PVC KK
1200
49X2.50
KK
15
39
C120 049 250 FBB KK
Chainwire 49X2.50 1800H FB BLACK PVC KK
1800
49X2.50
KK
10
39
C180 049 250 FBB KK
Chainwire 49X2.50 3000H FB BLACK PVC KK
3000
49X2.50
KK
10
71
C300 049 250 FBB KK
Chainwire 49X2.50 3600H FB BLACK PVC KK
3600
49X2.50
KK
10
79
C360 049 250 FBB KK
CHAINWIRE – FUSION BONDED BLACK PVC – 50X2.50 MESH
DESCRIPTION
HEIGHT (MM)
MESH
SELVEDGE
STD ROLL (M)
ROLL KG
ITEM NUMBER
Chainwire 50X2.50 1800H FB BLACK PVC KK
1800
50X2.50
KK
10
33
C180 050 250 FBB KK
Chainwire 50X2.50 3600H FB BLACK PVC KK
3600
50X2.50
KK
10
69
C360 050 250 FBB KK
CHAINWIRE – FUSION BONDED BLACK PVC – 50X3.15 MESH
DESCRIPTION
HEIGHT (MM)
MESH
SELVEDGE
STD ROLL (M)
ROLL KG
ITEM NUMBER
Chainwire 50X3.15 3000H FB BLACK PVC KK
3000
50X3.15
KK
10
93
C300 050 315 FBB KK
Should this just be powder coated posts?
GALVANISED PIPE – EXTRA LIGHT (GREEN END)
DESCRIPTION
NB
LENGTH
WALL OF THICKNESS
WEIGHT (KG)
SLING
POWDERCOATING
STOCKED
ITEM NUMBER
25NB 6500MM EXTRA LIGHT GAL PIPE
25
6500
X LIGHT
10.5
91
AVAILABLE
YES
PIPE 25NB 65 XL
25NB 7200MM EXTRA LIGHT GAL PIPE
25
7200
X LIGHT
11.7
91
AVAILABLE
YES
PIPE 25NB 72 XL
32NB 6500MM EXTRA LIGHT GAL PIPE
32
6500
X LIGHT
13.5
61
AVAILABLE
YES
PIPE 32NB 65 XL
32NB 7200MM EXTRA LIGHT GAL PIPE
32
7200
X LIGHT
14.9
61
AVAILABLE
YES
PIPE 32NB 72 XL
40NB 6500MM EXTRA LIGHT GAL PIPE
40
6500
X LIGHT
17.6
61
AVAILABLE
YES
PIPE 40NB 65 XL
40NB 7200MM EXTRA LIGHT GAL PIPE
40
7200
X LIGHT
19.4
61
AVAILABLE
YES
PIPE 40NB 72 XL
50NB 6500MM EXTRA LIGHT GAL PIPE
50
6500
X LIGHT
22.1
37
AVAILABLE
YES
PIPE 50NB 65 XL
50NB 7200MM EXTRA LIGHT GAL PIPE
50
7200
X LIGHT
24.5
37
AVAILABLE
YES
PIPE 50NB 72 XL
80NB 6500MM EXTRA LIGHT GAL PIPE
80
6500
X LIGHT
37.1
19
AVAILABLE
YES
PIPE 80NB 65 XL
GALVANISED PIPE – LIGHT (YELLOW END)
DESCRIPTION
20NB 6500MM LIGHT GAL PIPE
25NB 6500MM LIGHT GAL PIPE
32NB 6500MM LIGHT GAL PIPE
32NB 7200MM LIGHT GAL PIPE
40NB 6500MM LIGHT GAL PIPE
40NB 7200MM LIGHT GAL PIPE
50NB 6500MM LIGHT GAL PIPE
65NB 6500MM LIGHT GAL PIPE
80NB 6500MM LIGHT GAL PIPE
NB
20
25
32
32
40
40
50
65
80
LENGTH
6500
6500
6500
7200
6500
7200
6500
6500
6500
PIPE
LIGHT
LIGHT
LIGHT
LIGHT
LIGHT
LIGHT
LIGHT
LIGHT
LIGHT
WEIGHT (KG)
9.6
13.4
17.1
19.2
21.7
24.4
27.4
39.0
45.0
SLING
91
91
61
61
61
61
37
37
19
STOCKED
YES
YES
YES
YES
YES
YES
YES
YES
YES
POWDERCOATING
AVAILABLE
AVAILABLE
AVAILABLE
AVAILABLE
AVAILABLE
AVAILABLE
AVAILABLE
AVAILABLE
AVAILABLE
ITEM NUMBER
PIPE 20NB 65 GLPE
PIPE 25NB 65 GLPE
PIPE 32NB 65 GLPE
PIPE 32NB 72 GLPE
PIPE 40NB 65 GLPE
PIPE 40NB 72 GLPE
PIPE 50NB 65 GLPE
PIPE 65NB 65 GLPE
PIPE 80NB 65 GLPE
GALVANISED PIPE – MEDIUM (BLUE END)
DESCRIPTION
25NB 6500MM MEDIUM GAL PIPE
32NB 6500MM MEDIUM GAL PIPE
32NB 7200MM MEDIUM GAL PIPE
40NB 6500MM MEDIUM GAL PIPE
40NB 7200MM MEDIUM GAL PIPE
50NB 6500MM MEDIUM GAL PIPE
50NB 7200MM MEDIUM GAL PIPE
65NB 6500MM MEDIUM GAL PIPE
80NB 6500MM MEDIUM GAL PIPE
90NB 6500MM MEDIUM GAL PIPE
100NB 6500MM MEDIUM GAL PIPE
NB
25
32
32
40
40
50
50
65
80
90
100
LENGTH
6500
6500
7200
6500
7200
6500
7200
6500
6500
6500
6500
PIPE
MEDIUM
MEDIUM
MEDIUM
MEDIUM
MEDIUM
MEDIUM
MEDIUM
MEDIUM
MEDIUM
MEDIUM
MEDIUM
WEIGHT (KG)
16.1
20.7
23.3
23.7
26.5
33.4
45.6
43.2
55.5
81.0
80.6
SLING
91
61
61
61
61
37
37
19
19
19
19
STOCKED
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES
POWDERCOATING
AVAILABLE
AVAILABLE
AVAILABLE
AVAILABLE
AVAILABLE
AVAILABLE
AVAILABLE
AVAILABLE
AVAILABLE
AVAILABLE
AVAILABLE
ITEM NUMBER
PIPE 25NB 65 GMPE
PIPE 32NB 65 GMPE
PIPE 32NB 72 GMPE
PIPE 40NB 65 GMPE
PIPE 40NB 72 GMPE
PIPE 50NB 65 GMPE
PIPE 50NB 72 GMPE
PIPE 65NB 65 GMPE
PIPE 80NB 65 GMPE
PIPE 90NB 65 GMPE
PIPE 100NB 65 GMPE
SECURITY FENCING GUIDE – 1800MM HIGH CHAINWIRE FENCING WITH 3 ROWS BARBED WIRE
INTERMEDIATE POSTS – 3 X POST INDENTS WIRE – COMPLIES TO AS1074
DESCRIPTION
POST STRAIGHT- 32NB - XL - 3000
POST BENT 45° - 32NB - XL - 3000
POST STRAIGHT- 32NB - XL - 3250
POST BENT 45° - 32NB - XL - 3250
POST STRAIGHT- 32NB - LIGHT - 3250
POST BENT 45° - 32NB - LIGHT - 3250
POST STRAIGHT- 32NB - MED - 3250
POST BENT 45° - 40NB - MED - 3250
POST BENT 45° - 50NB - MED - 3250
DESCRIPTION
STRAIGHT
BENT (45°)
STRAIGHT
BENT (45°)
STRAIGHT
BENT (45°)
STRAIGHT
BENT (45°)
BENT (45°)
PIPE
32NB
32NB
32NB
32NB
40NB
40NB
40NB
40NB
50NB
GRADE
X LIGHT
X LIGHT
X LIGHT
X LIGHT
LIGHT
LIGHT
MEDIUM
MEDIUM
MEDIUM
LENGTH
3000mm
3000mm
3250mm
3250mm
3250mm
3250mm
3250mm
3250mm
3250mm
STOCKED
YES
YES
NO
NO
NO
NO
NO
NO
NO
WEIGHT (KG)
6.3
6.3
6.7
6.7
10.8
10.8
11.9
11.9
16.7
ITEM NUMBER
PST SX 32NB 3B 3000
PST BX 32NB 3B 3000
PST SX 32NB 3B 3250
PST BX 32NB 3B 3250
PST SL 40NB 3B 3250
PST BL 40NB 3B 3250
PST SM 40NB 3B 3250
PST BM 40NB 3B 3250
PST BM 50NB 3B 3250
CORNER & GATE POSTS – 3 X POST IDENTS FOR BARBED WIRE – COMPLIES TO AS1074
DESCRIPTION
POST STRAIGHT - 50NB - XL - 3250
POST BENT 55° - 50NB - XL - 3250
POST STRAIGHT - 50NB - LIGHT - 3250
POST BENT 55° - 50NB - LIGHT - 3200
POST STRAIGHT - 50NB - MED - 3250
POST BENT 55° - 50NB - MED - 3250
POST STRAIGHT - 80NB - LIGHT - 3250
POST STRAIGHT - 100NB - LIGHT - 3250
POST STRAIGHT TWIN - 2X80NB - LIGHT - 3250
POST STRAIGHT TRIPLE - 3X80NB - LIGHT - 3250
DESCRIPTION
STRAIGHT
BENT (55°)
STRAIGHT
BENT (55°)
STRAIGHT
BENT (55°)
STRAIGHT
STRAIGHT
STRAIGHT TWIN
STRAIGHT TRIPLE
PIPE
50NB
50NB
50NB
50NB
50NB
50NB
80NB
100NB
2 X 80NB
3 X 80NB
GRADE
X LIGHT
X LIGHT
LIGHT
LIGHT
MEDIUM
MEDIUM
LIGHT
MEDIUM
LIGHT
LIGHT
LENGTH
3250mm
3250mm
3250mm
3250mm
3250mm
3250mm
3250mm
3250mm
3250mm
3250mm
STOCKED
YES
YES
NO
YES
NO
NO
YES
NO
YES
YES
WEIGHT (KG)
11.1
11.1
13.7
13.7
16.7
16.7
22.5
40.3
46.4
74.4
ITEM NUMBER
PST SX 50NB 3B 3250
PST BX 50NB 3B 3250A
PST SL 50NB 3B 3250
PST BL 50NB 3B 3250A
PST SM 50NB 3B 3250
PST BM 50NB 3B 3250A
PST SL 80NB 3B 3250
PST SM 100NB 3B 3250
PST SL2X80 3B 3250
PST SL3X80 3B 3250
STAYS – COMPLIES TO AS1074
DESCRIPTION
STAY - BACK STAY BENT - 25NB - XL - 2130
STAY - STRAIGHT - 32NB - XL - 3600
DESCRIPTION
BACK STAY BENT
STRAIGHT
PIPE
25NB
32NB
GRADE
X LIGHT
X LIGHT
LENGTH
2130mm
3600mm
STOCKED
NO
YES
WEIGHT (KG)
3.5
7.5
ITEM NUMBER
STY XL 25NB 2130 B
STY XL 32NB 3600
SECURITY FENCING GUIDE – 2100MM HIGH CHAINWIRE FENCING WITH 3 ROWS BARBED WIRE
INTERMEDIATE POSTS – 3 X POST INDENTS FOR BARBED WIRE – COMPLIES TO AS1074
DESCRIPTION
STRAIGHT POST - 32NB - XL - 3250
BENT POST 45° - 32NB - XL - 3250
STRAIGHT POST - 40NB - LIGHT - 3250
BENT POST 45° - 40NB - LIGHT - 3250
STRAIGHT POST - 40NB - MED - 3250
DESCRIPTION
STRAIGHT
BENT (45°)
STRAIGHT
BENT (45°)
STRAIGHT
PIPE
32NB
32NB
40NB
40NB
40NB
GRADE
X LIGHT
X LIGHT
LIGHT
LIGHT
MEDIUM
LENGTH
3250
3250
3250
3250
3250
STOCKED
NO
NO
NO
NO
NO
WEIGHT (KG)
6.7
6.7
10.8
10.8
11.9
ITEM NUMBER
PST SX 32NB 3B 3250
PST BX 32NB 3B 3250
PST SL 40NB 3B 3250
PST BL 40NB 3B 3250
PST SM 40NB 3B 3250
CORNER & GATE POSTS – 3 X POST INDENTS FOR BARBED WIRE – COMPLIES TO AS1074
DESCRIPTION
CORNER POST - STRAIGHT - 50NB - XL - 3500
CORNER POST - BENT 55° - 50NB - XL - 3500
CORNER POST - STRAIGHT - 50NB - LIGHT - 3500
CORNER POST - BENT 55° - 50NB - LIGHT - 3500
CORNER POST - STRAIGHT - 50NB - MED - 3500
CORNER POST - STRAIGHT - 80NB - LIGHT - 3500
CORNER POST - BENT 45° - 80NB - LIGHT - 3500
CORNER POST - STRAIGHT - 100NB - MED - 3500
CORNER POST - STRAIGHT TRIPLE - 3X80NB - LIGHT - 3500
CORNER POST - STRAIGHT TWIN - 2X80NB - LIGHT - 3501
DESCRIPTION
STRAIGHT
BENT (55°)
STRAIGHT
BENT (55°)
STRAIGHT
STRAIGHT
BENT (45°)
STRAIGHT
STRAIGHT TWIN
STRAIGHT TRIPLE
PIPE
50NB
50NB
50NB
50NB
50NB
80NB
80NB
100NB
2 X 80NB
3 X 80NB
GRADE
X LIGHT
X LIGHT
LIGHT
LIGHT
MEDIUM
LIGHT
LIGHT
MEDIUM
LIGHT
LIGHT
LENGTH
3500
3500
3500
3500
3500
3500
3500
3500
3500
3500
STOCKED
NO
NO
NO
NO
NO
NO
NO
NO
NO
NO
WEIGHT (KG)
11.9
11.9
14.7
14.7
18.0
24.2
24.2
43.4
51.5
79.0
ITEM NUMBER
PST SX 50NB 3B 3500
PST BX 50NB 3B 3500A
PST SL 50NB 3B 3500
PST BL 50NB 3B 3500A
PST SM 50NB 3B 3500
PST SL 80NB 3B 3500
PST BM 80NB 3B 3500
PST SM 100NB 3B 3500
PST SL2X80NB 3B 3500
PST SL3X80NB 3B 3500
STAYS – COMPLIES TO AS1074
DESCRIPTION
STAY - BACK STAY BENT - 25NB - XL - 2130
STAY - STRAIGHT - 32NB - XL - 3600
DESCRIPTION
BACK STAY BENT
STRAIGHT
PIPE
25NB
32NB
GRADE
X LIGHT
X LIGHT
LENGTH
2130mm
3600mm
STOCKED
NO
YES
WEIGHT (KG)
3.5
7.5
ITEM NUMBER
STY XL 25NB 2130 B
STY XL 32NB 3600
Should this just be PC?
SINGLE SECURITY GATES – 1800 HIGH + 3 ROWS BARBED WIRE (2310)
DESCRIPTION
GATE WIDTH (MM)
GATE HEIGHT (MM)
FRAME
MESH (MM)
FINISH
STOCKED
ITEM NUMBER
GALVANISED FRAME – PVC CHAINWIRE & LACING
S/GATE GAL FRAME 25NB 1800 X 900 - 50 X 2.5/3.15 BLK PVC MESH
S/GATE GAL FRAME 25NB 1800 X 1200 - 50 X 2.5/3.15 BLK PVC MESH
S/GATE GAL FRAME 25NB 1800 X 1500 - 50 X 2.5/3.15 BLK PVC MESH
S/GATE GAL FRAME 32NB 1800 X 1500 - 50 X 2.5/3.15 BLK PVC MESH
1800
1800
1800
1800
900
1200
1500
1500
25NB
25NB
25NB
32NB
50 X 2.5/3.15
50 X 2.5/3.15
50 X 2.5/3.15
50 X 2.5/3.15
GAL FRAME / PVC CHAINWIRE
GAL FRAME / PVC CHAINWIRE
GAL FRAME / PVC CHAINWIRE
GAL FRAME / PVC CHAINWIRE
NO
NO
NO
NO
GS1PVC
GS3PVC
GS4PVC
GS7PVC
FULL COLOUR – POWDERCOATED FRAME – PVC COATED CHAINWIRE & LACING
S/GATE BLK FRAME 25NB 1800 X 900 - 50 X 2.5/3.15 BLK PVC MESH
S/GATE BLK FRAME 25NB 1800 X 1200 - 50 X 2.5/3.15 BLK PVC MESH
S/GATE BLK FRAME 25NB 1800 X 1500 - 50 X 2.5/3.15 BLK PVC MESH
S/GATE BLK FRAME 32NB 1800 X 1500 - 50 X 2.5/3.15 BLK PVC MESH
1800
1800
1800
1800
900
1200
1500
1500
25NB
25NB
25NB
32NB
50 X 2.5/3.15
50 X 2.5/3.15
50 X 2.5/3.15
50 X 2.5/3.15
P/COAT FRAME / PVC CHAINWIRE
P/COAT FRAME / PVC CHAINWIRE
P/COAT FRAME / PVC CHAINWIRE
P/COAT FRAME / PVC CHAINWIRE
YES(LH)
NO
NO
NO
GS1FC
GS3FC
GS4FC
GS7FC
DOUBLE DOMESTIC GATES – 900 TO 1200 HIGH
DESCRIPTION
GATE WIDTH (MM)
GATE HEIGHT (MM)
FRAME
MESH (MM)
FINISH
STOCKED
ITEM NUMBER
GALVANISED FRAME + PVC COATED CHAINWIRE & LACING
D/GATE GAL FRAME 25NB 900 X 3000 - 50 X 2.5/3.15 - BLK PVC MESH
D/GATE GAL FRAME 25NB 900 X 6000 - 50 X 2.5/3.15 - BLK PVC MESH
D/GATE GAL FRAME 25NB 1200 X 3000 - 50 X 2.5/3.15 - BLK PVC MESH
D/GATE GAL FRAME 25NB 1200 X 6000 - 50 X 2.5/3.15 - BLK PVC MESH
900
900
1200
1200
3000 (2 X 1500)
6000 (2 X 3000)
3000 (2 X 1500)
6000 (2 X 3000)
25NB
25NB
25NB
25NB
50 X 2.5/3.15
50 X 2.5/3.15
50 X 2.5/3.15
50 X 2.5/3.15
GAL FRAME / PVC CHAINWIRE
GAL FRAME / PVC CHAINWIRE
GAL FRAME / PVC CHAINWIRE
GAL FRAME / PVC CHAINWIRE
NO
NO
NO
NO
GD18PVC
GD20PVC
GD24PVC
GD26PVC
FULL COLOUR – POWDERCOATED FRAME + PVC COATED CHAINWIRE & LACING
D/GATE BLK FRAME 25NB 900 X 3000 - 50 X 2.5/3.15 - BLK PVC MESH
D/GATE BLK FRAME 25NB 900 X 6000 - 50 X 2.5/3.15 - BLK PVC MESH
D/GATE BLK FRAME 25NB 1200 X 3000 - 50 X 2.5/3.15 - BLK PVC MESH
D/GATE BLK FRAME 25NB 1200 X 6000 - 50 X 2.5/3.15 - BLK PVC MESH
900
900
1200
1200
3000 (2 X 1500)
6000 (2 X 3000)
3000 (2 X 1500)
6000 (2 X 3000)
25NB
25NB
25NB
25NB
50 X 2.5/3.15
50 X 2.5/3.15
50 X 2.5/3.15
50 X 2.5/3.15
FULL COLOUR
FULL COLOUR
FULL COLOUR
FULL COLOUR
NO
NO
NO
NO
GD18FC
GD20FC
GD24FC
GD26FC
SINGLE SECURITY GATES – 1500 HIGH + 3 ROWS BARBED WIRE (2310)
DESCRIPTION
GATE WIDTH (MM)
GATE HEIGHT (MM)
FRAME
MESH (MM)
FINISH
STOCKED
ITEM NUMBER
GALVANISED FRAME – COATED CHAINWIRE & LACING
S/GATE GAL FRAME 25NB 1500 X 900 - 50 X 2.5/3.15 - BLK PVC MESH
S/GATE GAL FRAME 25NB 1800 X 1200 - 50 X 2.5/3.15 - BLK PVC MESH
S/GATE GAL FRAME 25NB 1800 X 1500 - 50 X 2.5/3.15 - BLK PVC MESH
S/GATE GAL FRAME 25NB 1800 X 900 - 50 X 2.5/3.15 - BLK PVC MESH
S/GATE GAL FRAME 25NB 1800 X 1200 - 50 X 2.5/3.15 - BLK PVC MESH
S/GATE GAL FRAME 25NB 1800 X 1500 - 50 X 2.5/3.15 - BLK PVC MESH
S/GATE GAL FRAME 25NB 1800 X 1070 - 49 X 2.5/3.15 - BLK PVC MESH
1500
1800
1800
1800
1800
1800
1980
900
1200
1500
900
1200
1500
1070
25NB
25NB
25NB
25NB
25NB
25NB
25NB
50X2.5
50X2.5
50X2.5
50X2.5
50X2.5
50X2.5
49X2.5
GAL FRAME / PVC CHAINWIRE
GAL FRAME / PVC CHAINWIRE
GAL FRAME / PVC CHAINWIRE
GAL FRAME / PVC CHAINWIRE
GAL FRAME / PVC CHAINWIRE
GAL FRAME / PVC CHAINWIRE
GAL FRAME / PVC CHAINWIRE
NO
NO
NO
NO
NO
NO
NO
GS28PVC
GS29PVC
GS31PVC
GS34PVC
GS35PVC
GS36PVC
# GS40PVC
FULL COLOUR • POWDERCOATED
S/GATE BLK FRAME 25NB 1500 X 900 - 50 X 2.5/3.15 - BLK PVC MESH
S/GATE BLK FRAME 25NB 1500 X 1200 - 50 X 2.5/3.15 - BLK PVC MESH
S/GATE BLK FRAME 25NB 1500 X 1500 - 50 X 2.5/3.15 - BLK PVC MESH
S/GATE BLK FRAME 25NB 1800 X 900 - 50 X 2.5/3.15 - BLK PVC MESH
S/GATE BLK FRAME 25NB 1800 X 1200 - 50 X 2.5/3.15 - BLK PVC MESH
S/GATE BLK FRAME 25NB 1800 X 1500 - 50 X 2.5/3.15 - BLK PVC MESH
S/GATE BLK FRAME 25NB 1980 X 1070 - 49 X 2.5/3.15 - BLK PVC MESH
1500
1500
1500
1800
1800
1800
1980
900
1200
1500
900
1200
1500
1070
25NB
25NB
25NB
25NB
25NB
25NB
25NB
50X2.5
50X2.5
50X2.5
50X2.5
50X2.5
50X2.5
49X2.5
FULL COLOUR
FULL COLOUR
FULL COLOUR
FULL COLOUR
FULL COLOUR
FULL COLOUR
FULL COLOUR
NO
NO
NO
NO
NO
NO
YES(LH)
GS28FC
GS29FC
GS31FC
GS34FC
GS35FC
GS36FC
GS40FC
DOUBLE SECURITY GATES – 1800 HIGH + 3 ROWS BARBED WIRE (2310)
DESCRIPTION
GATE WIDTH (MM)
GATE HEIGHT (MM)
FRAME
MESH (MM)
FINISH
STOCKED
ITEM NUMBER
GALVANISED FRAME – PVC COATED CHAINWIRE & LACING
D/GATE BLK FRAME 25NB 3000 X 2310 - 50 X 2.5/3.15 - BLK PVC MESH
D/GATE BLK FRAME 25NB 4200 X 2310 - 50 X 2.5/3.15 - BLK PVC MESH
D/GATE BLK FRAME 25NB 6000 X 2310 - 50 X 2.5/3.15 - BLK PVC MESH
D/GATE BLK FRAME 25NB 8400 X 2310 - 50 X 2.5/3.15 - BLK PVC MESH
3000 (2 X 1500)
4200 (2 X 2100)
6000 (2 X 3000)
8400 (2 X 4200)
2310
2310
2310
2310
32NB
32NB
32NB
32NB
50 X 2.5/3.15
50 X 2.5/3.15
50 X 2.5/3.15
50 X 2.5/3.15
GAL FRAME / PVC CHAINWIRE
GAL FRAME PVC CHAINWIRE
GAL FRAME PVC CHAINWIRE
GAL FRAME / PVC CHAINWIRE
NO
NO
NO
NO
GD7PVC
GD9PVC
GD12PVC
GD14PVC
FULL COLOUR – POWDERCOATED FRAME – PVC COATED CHAINWIRE & LACING
D/GATE GAL FRAME 25NB 3000 X 2310 - 50 X 2.5/3.15 - BLK PVC MESH
D/GATE GAL FRAME 25NB 4200 X 2310 - 50 X 2.5/3.15 - BLK PVC MESH
D/GATE GAL FRAME 25NB 6000 X 2310 - 50 X 2.5/3.15 - BLK PVC MESH
D/GATE GAL FRAME 25NB 8400 X 2310 - 50 X 2.5/3.15 - BLK PVC MESH
3000 (2 X 1500)
4200 (2 X 2100)
6000 (2 X 3000)
8400 (2 X 4200)
2310
2310
2310
2310
32NB
32NB
32NB
32NB
50 X 2.5/3.15
50 X 2.5/3.15
50 X 2.5/3.15
50 X 2.5/3.15
FULL COLOUR
FULL COLOUR
FULL COLOUR
FULL COLOUR
NO
NO
YES
NO
GD7FC
GD9FC
GD12FC
GD14FC
SINGLE HEAVY DUTY GATES – PLAIN TOP – 1800 HIGH
DESCRIPTION
GATE WIDTH (MM)
GATE HEIGHT (MM)
FRAME
MESH (MM)
FINISH
STOCKED
ITEM NUMBER
GALVANISED FRAME – PVC COATED CHAINWIRE & LACING
S/GATE GAL FRAME 32NB - 900 X 1800 - 50 X 2.5/3.15 - BLK PVC MESH
900
1800
32NB
50X2.5
GAL FRAME / PVC CHAINWIRE
NO
GS41PVC
FULL COLOUR – POWDERCOATED FRAME – PVC COATED – CHAINWIRE & LACING
FULL COLOUR - POWDERCOATED FRAME - PVC COATED - CHAINWIRE & LACING
900
1800
FULL COLOUR
50X2.5
FULL COLOUR
NO
GS41FC
DOUBLE HEAVY DUTY GATES – PLAIN TOP – 1800 HIGH
DESCRIPTION
GATE WIDTH (MM)
GATE HEIGHT (MM)
FRAME
MESH (MM)
FINISH
STOCKED
ITEM NUMBER
GALVANISED FRAME – COATED CHAINWIRE & LACING
D/GATE GAL FRAME 32NB 3000 X 1800 - 50 X 2.5/3.15 - BLK PVC MESH
D/GATE GAL FRAME 32NB 6000 X 1800 - 50 X 2.5/3.15 - BLK PVC MESH
3000 (2 X 1500)
6000 (2 X 3000)
1800
1800
32NB
32NB
50X2.5
50X2.5
GAL FRAME PVC CHAINWIRE
GAL FRAME PVC CHAINWIRE
NO
NO
GD42PVC
GD47PVC
FULL COLOUR • POWDERCOATED FRAME + PVC COATED CHAINWIRE & LACING
D/GATE BLK FRAME 32NB 3000 X 1800 - 50 X 2.5/3.15 - BLK PVC MESH
D/GATE BLK FRAME 32NB 6000 X 1800 - 50 X 2.5/3.15 - BLK PVC MESH
3000 (2 X 1500)
6000 (2 X 3000)
1800
1800
32NB
32NB
50X2.5
50X2.5
FULL COLOUR
FULL COLOUR
NO
NO
GD42FC
GD47FC
SINGLE DOMESTIC GATES 900-1200 HIGH
DESCRIPTION
GATE WIDTH (MM)
GATE HEIGHT (MM)
FRAME
MESH (MM)
FINISH
STOCKED
ITEM NUMBER
GALVANISED FRAME + PVC COATED CHAINWIRE & LACING
S/GATE GAL FRAME 25NB 900 X 900 - 50 X 2.5/3.15 - BLK PVC MESH
S/GATE GAL FRAME 25NB 900 X 1200 - 50 X 2.5/3.15 - BLK PVC MESH
S/GATE GAL FRAME 25NB 1500 X 900 - 50 X 2.5/3.15 - BLK PVC MESH
S/GATE GAL FRAME 25NB 900 X 1200 - 50 X 2.5/3.15 - BLK PVC MESH
S/GATE GAL FRAME 25NB 1200 X 1200 - 50 X 2.5/3.15 - BLK PVC MESH
S/GATE GAL FRAME 25NB 1500 X 1200 - 50 X 2.5/3.15 - BLK PVC MESH
900
1200
1500
900
1200
1500
900
900
900
1200
1200
1200
25NB
25NB
25NB
25NB
25NB
25NB
50 X 2.513.15
50 X 2.513.15
50 X 2.513.15
50 X 2.513.15
50 X 2.513.15
50 X 2.513.15
GAL FRAME / PVC CHAINWIRE
GAL FRAME / PVC CHAINWIRE
GAL FRAME / PVC CHAINWIRE
GAL FRAME / PVC CHAINWIRE
GAL FRAME / PVC CHAINWIRE
GAL FRAME / PVC CHAINWIRE
NO
NO
NO
NO
NO
NO
GS16PVC
GS17PVC
GS18PVC
GS22PVC
GS23PVC
GS24PVC
FULL COLOUR – POWDERCOATED FRAME + PVC COATED CHAINWIRE & LACING
S/GATE BLK FRAME 25NB 900 X 900 - 50 X 2.5/3.15 - BLK PVC MESH
S/GATE BLK FRAME 25NB 1200 X 900 - 50 X 2.5/3.15 - BLK PVC MESH
S/GATE BLK FRAME 25NB 1500 X 900 - 50 X 2.5/3.15 - BLK PVC MESH
S/GATE BLK FRAME 25NB 900 X 1200 - 50 X 2.5/3.15 - BLK PVC MESH
S/GATE BLK FRAME 25NB 1200 X 1200 - 50 X 2.5/3.15 - BLK PVC MESH
S/GATE BLK FRAME 25NB 1500 X 900 - 50 X 2.5/3.15 - BLK PVC MESH
900
1200
1500
900
1200
1500
900
900
900
1200
1200
1200
25NB
25NB
25NB
25NB
25NB
25NB
50 X 2.513.15
50 X 2.513.15
50 X 2.513.15
50 X 2.513.15
50 X 2.513.15
50 X 2.513.15
FULL COLOUR
FULL COLOUR
FULL COLOUR
FULL COLOUR
FULL COLOUR
FULL COLOUR
NO
NO
NO
NO
NO
NO
GS16FC
GS17FC
GS18FC
GS22FC
GS23FC
GS24FC
DESCRIPTION
GATE WIDTH (MM)
GATE HEIGHT (MM)
FRAME
MESH (MM)
FINISH
STOCKED
ITEM NUMBER
GALVANISED FRAME + PVC COATED CHAINWIRE & LACING
D/GATE BLK FRAME 32NB 3600 X 1500 - 50 X 2.5/3.15 - BLK PVC MESH
D/GATE BLK FRAME 32NB 3000 X 1800 - 50 X 2.5/3.15 - BLK PVC MESH
D/GATE BLK FRAME 32NB 4000 X 1800 - 50 X 2.5/3.15 - BLK PVC MESH
D/GATE BLK FRAME 32NB 6000 X 1800 - 50 X 2.5/3.15 - BLK PVC MESH
D/GATE BLK FRAME 32NB 3000 X 1980 - 50 X 2.5/3.15 - BLK PVC MESH
3600 (2 X 1800)
3000 (2 X 1500)
4000 (2 X 2000)
6000 (2 X 3000)
3000 (2 X 1500)
1500
1800
1800
1800
1980
25NB
25NB
25NB
25NB
25NB
50 X 2.513.15
50 X 2.513.15
50 X 2.513.15
50 X 2.513.15
49X2.5
GAL FRAME / PVC CHAINWIRE
GAL FRAME / PVC CHAINWIRE
GAL FRAME / PVC CHAINWIRE
GAL FRAME / PVC CHAINWIRE
NO
NO
NO
NO
GD31PVC
GD36PVC
GD38PVC
GD39PVC
# GD40PVC
FULL COLOUR – POWDERCOATED FRAME + PVC COATED CHAINWIRE & LACING
D/GATE BLK FRAME 32NB 3600 X 1500 - 50 X 2.5/3.15 - BLK PVC MESH
D/GATE BLK FRAME 32NB 3000 X 1800 - 50 X 2.5/3.15 - BLK PVC MESH
D/GATE BLK FRAME 32NB 4000 X 1800 - 50 X 2.5/3.15 - BLK PVC MESH
D/GATE BLK FRAME 32NB 6000 X 1800 - 50 X 2.5/3.15 - BLK PVC MESH
D/GATE BLK FRAME 32NB 3000 X 1980 - 50 X 2.5/3.15 - BLK PVC MESH
3600 (2 X 1800)
3000 (2 X 1500)
4000 (2 X 2000)
6000 (2 X 3000)
3000 (2 X 1500)
1500
1800
1800
1800
1980
25NB
25NB
25NB
25NB
25NB
50 X 2.513.15
50 X 2.513.15
50 X 2.513.15
50 X 2.513.15
49X2.5
FULL COLOUR
FULL COLOUR
FULL COLOUR
FULL COLOUR
FULL COLOUR
NO
NO
NO
NO
NO
GD31FC
GD36FC
GD38FC
GD39FC
# GD40FC
FUSION BONDED FENCING SPECIFICATIONS
WARRANTY
High Security fencing Warranty – Protective Fencing as the manufacturer of the PROMAX security system warranty’s that the products will be suitable for the propose intended and free of any manufacturing defects for a period of 10 years.
TESTING & STANDARDS
Diamond Fence ™ systems are manufactured and tested to ensure they comply with the following Australian Standards:
✔AS/NZS 1725-2010 – Chainlink fabric fencing
✔AS/NZS 4534-2006 Zinc/Zinc Aluminium alloy coatings on steel wire.
✔AS/NZS 2423-2002 Coated steel wire fencing products for terrestrial, aquatic and general use.
✔AS/NZS 4680-2006 hot dip galvanised (zinc) coatings of fabricated ferrous articles.
✔AS/NZS 4506-2005 Metal finishing – Thermoset powder coatings.
POWDERCOATING
Protective Powdercoating are an accredited applicator of Interpon Metaplex commercial coatings on hot-dipped galvanised steel.
- Interpon Metaplex Commercial Accredited Applicator, product warranty available depending on topcoat selection.
- Powdercoating completed in accordance with AS/NZ 4506-2005 Metal Finishing – Thermoset Powder Coatings.
SECTORS
OTHER AVAILABLE HIGH SECURITY PRODUCT’S
PROMAX MESH FENCING
- Anti-climb mesh
- Engineered T-Post system
- Heights up to 6000mm
- Rail-less design available
- Made in Australia
PROTECTION LEVEL
PROPALE W PALISADE FENCING
- W Pale design
- Suits slopes up to 20o
- Engineered to BS1722
- Heights up to 3600mm
- Made in Australia
PROTECTION LEVEL
BOULEVARD SECURITY FENCING
- Anti-climb top
- Engineered to DET 0601006
- Heights up to 2400mm
- Rail-less design
- Made in Australia
PROTECTION LEVEL
TUBULAR FENCING
- Available in many colours
- Custom design available
- Heights up to 2400mm
- Quick and easy to install
- Made in Australia
PROTECTION LEVEL
STEELMESH FENCING
- Made in Australia
- Heights up to 2400mm
- Quick and easy to install
- Custom-engineered gates available
- In stock and available
PROTECTION LEVEL
